MEB500 quick shipping PP PE bottle recycling line

Product Description

Product Description
PE/HDPE/PP/ABS/PS (RIGID FORM )

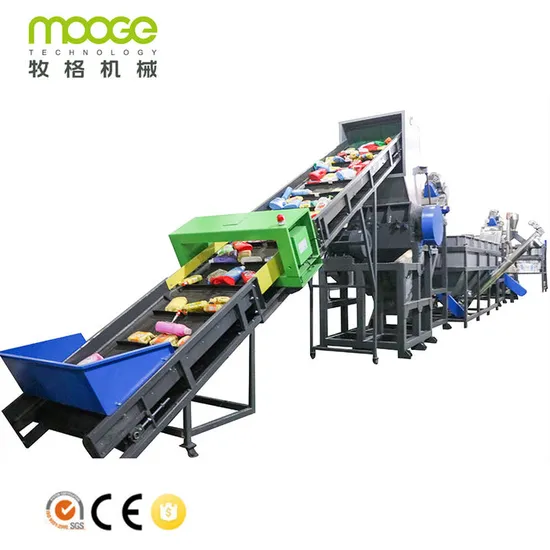

Bottle ,Bucket,Hollow Container Recycling Machine It used to recycling the waste HDPE/LDPE/PP/ABS/PS Bottles and buckets,hollow container and so on.The production line including the conveyor belt,metal detector ,plastic wet crusher,floating washing tank,high speed friction washer,centrifugal dewatering machine; drying system and label separating machine,material collecting packing system.
After crushing and washing and drying,we can use it to pelletizing line.We also can customzed it according to your requirement. Product Parameters
Standard System
we can design the layout according to your requirements .

Model	Capacity	Installed Power	Hot Washing	Water Supply	Manpower	Area Rwquired(L*W*H)
MEB-300	300kg/hr	100kw	Optional	4-5m³/hr	1-2	20m*4.5m*5m
MEB-500	500kg/hr	115kw	Optional	5-6m³/hr	1-2	20m*4.5m*5m
MEB-1000	1000kg/hr	125kw	Optional	7-8m³/hr	2-3	23m*5m*5m
MEB-1500	1500kg/hr	180kw	Optional	8-10m³/hr	2-3	25m*5m*5m
MEB-2000	2000kg/hr	225kw	Optional	10-15m³/hr	2-3	28m*5*5m

Advanced System
we can design the layout according to your requirements .

Model	Capacity	Installed Power	Hot Washing	Water Supply	Manpower	Area Required(L*W*H)
MEB-300	300kg/hr	130kw	Optional	5-6m³/hr	1-2	38m*4.5m*5m
MEB-500	500kg/hr	145kw	Optional	7-8m³/hr	1-2	38m*4.5m*5m
MEB-1000	1000kg/hr	190kw	Optional	8-10m³/hr	2-3	42m*5m*5m
MEB-1500	1500kg/hr	230kw	Optional	10-15m³/hr	2-3	45m*5m*5m
MEB-2000	2000kg/hr	280kw	Optional	15-20m³/hr	2-3	45m*5m*5m

Final Material
Clean crushed small flakes
Detailed Photos
Plastic Crusher Machine
Function :crushing the material into small flakes
With water inlet do wet crushing.
This series blades are more wider, it will save the blades cost.
Use the big roller bearing ensure its long time running.
Bearing house is outside of the crusher chamber so no dirty goes inside for longer use.
Friction washing loader
Function: Friction washing with water to remove the dirty and loading up it
Up and down both mounted with bearing design
With water injection system to cleaning the screen
Bottom with water drain system
Washing off the dirty and loading the material out to next step processing.
Floating washing tank

Function: Floating Washing separate the sand, soil and other dirty The roller is specially made can have more
washing for lakes but less water take out
Bottom with Positive and negative screw to pushingthe dirty into middle
High speed dewater machine
Function: take out dirty and remover water
With the roller bearing and fixed outside of
rotor for long use life
Inside with mesh layer, mesh diameter: 3mm
With water spray system to clean the mesh

Hot air dryer system

Function:drying the material
heating by electricity box
After Sales Service
• Pre-sale: we given client the details technician offer, sign the sales contract etc• In-sales: we supply the details layout, installation instruction, technician support for the clients• After sales: we arrange engineer to install the machinery and training the workers for client• We have 24hours team to solve the after sales problem• We have free spare parts with the machine• We supply long term spare parts for every customer• We always up date the new technology to every customer
