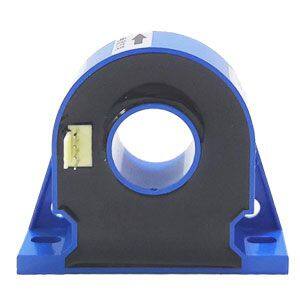

HIT600 has a high gain and measurement accuracy in the full bandwidth range, due to the application of the
multi-point zero-flux technology system and high-frequency ripple sensing channel on top of currently existing
DC sensor technology.
Primary Nominal Current: DC600A, AC424A,
Overload Capacity: DC720A for 1 minute,
Power Supply: DC14.2V to 15.8V,
Ratio: 3000:1,
Secondary Burden Resistance: 2 ~ 5Ω,
Accuracy: 0.05%,
Linearity: 50ppm,
Current Change Rate: 100A/us,
Frequency bandwidth(-3dB): up to 100KHz,
Insulation Voltage (Between primary and secondary): 5KV,
Operation Temperature Range: -40 ~ 85℃.
>>
