| BASIC INFO | |

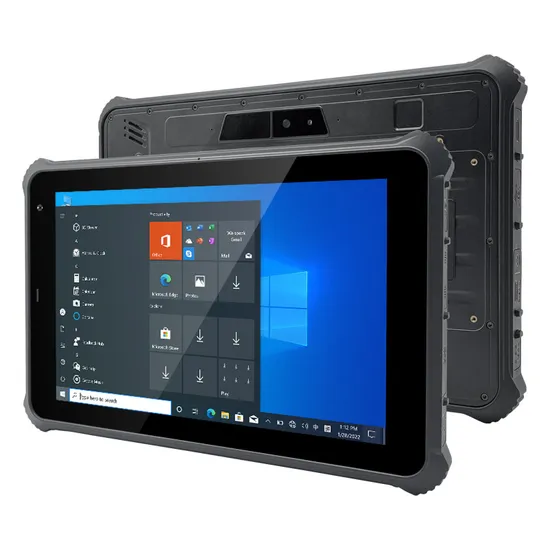

| Model No. | WinPad W109 |
| Operating system | Windows 10 home (Win 10 pro, Win 10 IOT optional) |
| Dimension | 277.48*182.74*21.5mm |
| Weight | 1155g |
| Material | PC+TPU |
| Color | Black (can be customized) |
| Language | Multi-language |
| HARDWARE | |
| Display | 10.1 inch Corning Gorilla III IPS capacitive touch screen, 1280*800px, 450cd/ |
| Processor | Intel Cherry Trail Z8350 quad core, 1.44GHz ~ 1.92GHz; GPU: Intel HD Graphics Gen8 |
| RAM | 4GB RAM |
| ROM | 64GB ROM (32GB/128GB ROM optional), support TF card up to 256GB maximally |
| Camera | Rear camera: 5MP; Front camera: 2MP |
| Battery | Removable 3.8V/8500mAh Li-ion battery |
| Sensor | Gravity sensor |
| Speaker | *2, 1.2W/8Ω |
| Receiver | *1 |
| Mic | *2 |
| Keys | Power key, Volume+/-, P-Key, F-Key |
| Indicator light | *1 |
| NETWORK & CONNECTIVITY | |
| Bands | 2G: GSM 900/1800MHz |
| 3G: WCDMA 850/900/2100MHz | |
| 4G: FDD-LTE B1/B3/B5/B7/B8/B20, TDD-LTE B38/B40/B41 | |
| WiFi | IEEE 802.11a/b/g/n/ac, support 2.4G/5.8G dual-band WiFi |
| BT | V4.0(BLE), ~10 meter |
| GNSS | Built-in U-blox M7N module, support GPS/BDS |
| I/O INTERFACES | |
| Micro SIM Slot | *1 |
| TF Card slot | *1 |
| USB Type-C 2.0 | *1, Support OTG |
| USB Type-A 2.0 | *1 |
| RJ45 Ethernet Port | *1, 100Mbps |
| RS232 | *1 |
| DC-IN | *1 |
| Mini HD-MI | *1 |
| 3.5mm Audio Jack | *1 |
| Pogo Pin | *1 |
| CONINVERS | RS232/USB/DC5V/CAN BUS optional |
| OPTIONAL FUNCTIONS | |
| NFC | 13.56MHz, Support: 14443A/14443B/15693 |
| UHF RFID | PR9200, Read distance: 1.5m-3m; Read distance 2: 5m-8m |
| ID Card Reader | Support reading 2th Generation ID card |
| Fingerprint | 1: Ordinary industrial fingerprint 2: Fingerprint authentication by the Ministry of Public Security 3: FBI certified fingerprint |
| 1D barcode scanner | Zebra SE655 |
| 2D barcode scanner | Zebra SE2707 |
| Screen | 800cd/(1920*1200px),1000cd/(1280*800px),Wet hand touch, Glove touch, Active/passive capacitor pen, AG+AF Coating, AR Coating |
| RELIABILITY | |
| Waterproof | IP67 |
| Drop-proof | 1.2M,Cement floor |
| Temperature range | Operating: -20ºC~60ºC Storage: -30ºC~70ºC |
| ACCESSORIES | |
| Charger(5V/3A) | *1 |
| User Manual | *1 |
| Hand strap | Optional |
| Mounted bracket | Optional |
| Standby Battery | Optional |
| Docking | Optional |
| Type-C Cable | Optional |
| OTG Cable | Optional |
