Product Details
Product Description
Product Description
Product Description
By adopting cast steel rack and swing jaw, PE series product has high strength and long life. Medium and large scale jaw crusher designed by VANGUARD has world-class capacity with many characters like big crushing ratio, uniform particle size, simple structure, reliable working performance easy maintenance, low operation cost and so on. This jaw crusher could be widely used in mining, smelting building material, highway, railway water conservancy and chemical industries, which can crush varieties of materials with a compressive strength no more than 320MPa. The PE series is used for coarse crushing while PEX series for medium and fine crushing.
PRODUCT APPLICATION
PRODUCT PARAMETERS
Model
| Size of Feed
Opening(mm)
| Max.Feeding Size
(mm)
| Adjustable Size of
Discharge Opening(mm)
| Capacity
(T/H)
| Power
(KW)
|
|
PE150×250
| 150×250
| 125
| 10-40
| 1-3
| 5.5
|
PE150×750
| 150×750
| 125
| 18-48
| 8-25
| 15
|
PE250×400
| 250×400
| 210
| 20-60
| 5-20
| 15
|
PE400×600
| 400×600
| 340
| 40-100
| 16-65
| 30
|
PE500×750
| 500×750
| 425
| 50-100
| 45-100
| 55
|
PE600×900
| 600×900
| 500
| 65-160
| 60-160
| 75
|
PE750×1060
| 750×1060
| 630
| 80-160
| 110-320
| 110
|
PE800×1060
| 800×1060
| 640
| 130-190
| 130-330
| 110
|
PE900×1200
| 900×1200
| 750
| 95-210
| 220-450
| 132
|
PE1000×1200
| 1000×1200
| 850
| 200-300
| 280-560
| 160
|
PE1200×1500
| 1200×1500
| 1020
| 150-300
| 400-800
| 220
|
PE1500×1800
| 1500×1800
| 1200
| 210-360
| 520-1100
| 280
|
PEX250×750
| 250×750
| 210
| 25-60
| 13-35
| 22
|
PEX250×1000
| 250×1000
| 210
| 25-60
| 16-52
| 30
|
PEX250×1200
| 250×1200
| 210
| 25-60
| 20-65
| 37
|
PEX300×1300
| 300×1300
| 250
| 20-90
| 30-105
| 55
|
PRODUCT ADVANTAGES
Adopting mono-block cast and and new assembly technology could make it match up with rack perfectly, radial strength is increased.
Unique flywheel design reduces the shock of machine to guarantee stable operation.
Deep crushing cavity, no dead corner. Input size range and capacity are increased;
New oil-way design can match up with oil pump; simple structure, easy maintenance and longer service life.

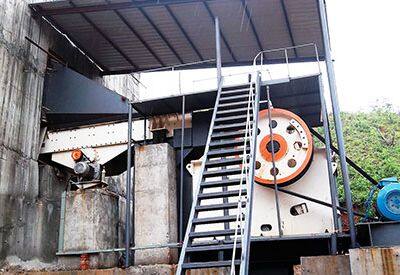

CUSTOMERS' SITES
Packaging and Shipping
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, ore beneficiation machine, EPC general contract project, etc. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular manafacturer in global mining industry.
Matching of production and support system allows customers to get the best service at the lowest cost.
Qualification
All of our products have passed ISO9001-2008 international quality management system certification, European CE certification and Russia GOST certification, and our company has established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds.
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.
Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.
Q3：What is the shape of the aggregate made by your company's crusher?
A: The shape of the aggregate is related to the design of the crusher or the complete stone production line. Our engineers will design the most suitable proposal based on raw materials.
Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
>>
