Highly Integrated EPC Bbu and Rru with TD-SCDMA Technology Outdoor Basestation Transceiver

Product Description

Product Description

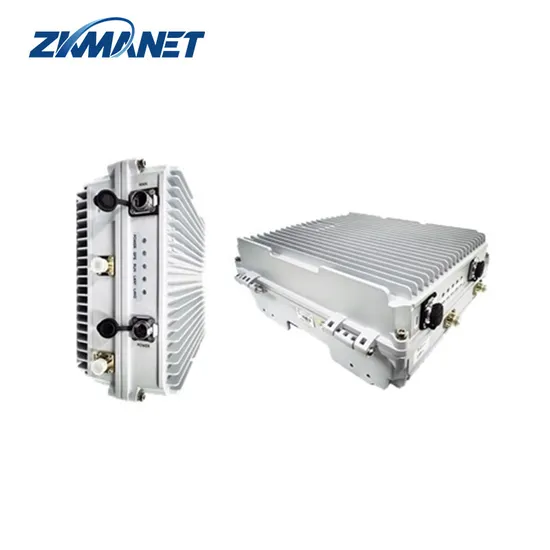

The ZKManet7561 is a highly integrated private network base station, mainly composed of baseband processing unit (BBU), remote radio remote unit (RRU) and EPC. It is a miniaturized LTE private network base station specially developed according to the needs of the private network communication market, supports dual-channel antenna configuration, works in the 1.4GHz band (400M/600M/1.4G/1.8G can be customized), supports 5MHz, 10MHz, 20MHz bandwidth. It is especially suitable for providing wireless coverage solutions for various industries in the private network communication market, such as smart cities, intelligent transportation, subways, tunnels, mines, petroleum, ports, armed police, civil air defense, emergency and other environments.Features
* Highly integrated EPC, BBU and RRU
* Based on TD-SCDMA technology
* MIMO dual-stream beamforming technology
* High safety USIM quintuple authentication and encryption
* Supports GPS/BD
* Rugged IP67
Specifications

RF Characteristics
System Mode	TDD LTE
Frequency	1447-1467MHz (400M/600M/1.4G/1.8G Customizable)
RF Channel	2T2R
Output Power	2*10W
3GPP	Release 9
Sensitivity	≤-101.5dBm
Network Characteristics
Authentication	USIM Quintuple Authentication
Up/Downlink rate	40/80Mbps
Time Slot Ratio	cfg0,1,2,3 … 10
Maximum Concurrent	128
Encryption	AES
Electrical Characteristics
Working Voltage	AC 100-240V
Power Consumption	≤150W
Physical Characteristics
Weight	15kg
Dimensions	370*295*150mm
IP Rating	IP66
Storage Temp.	-45ºC~85ºC
Working Temp.	-40ºC~75ºC

Dimensions
Panel Description
1 LAN Port
2 Power Indicator
3 GPS Indicator
4 Running Indicator
5 LAN1 Indicator
6 LAN 2 Indicator
7 Power Input Port
8 Antenna Interface-Type N
9 Antenna Interface-Type N
Company Profile
Zhongke Lianxun (Shenzhen) Co.,Ltd is a high-tech R&D enterprise. Our products mainly use Mesh and LTE as core technologies and auxiliary decision-making software to form underground building emergency communication systems, military and police tactical investigation communication systems, military and police non combat training communication systems, urban emergency communication systems, emergency communication vehicle communication systems, etc., suitable for law enforcement forces and government departments such as public security, armed police, military, forest fire prevention, civil air defense, and maritime. Especially the intelligent communication products of special robots have solved the long-distance communication and control problems of robots in complex environments.
We have multiple patents with independent intellectual property rights, has established a sound quality system and national military standard system that comply with ISO9001 standards, and strictly produces products in accordance with national military standards and internationally recognized standards such as CCC, CE, FCC, etc. It has obtained the Radio Transmission Equipment Model Approval Certificate issued by the Ministry of Industry and Information Technology of China and has passed the wireless product testing certification of the Ministry of Public Security.
