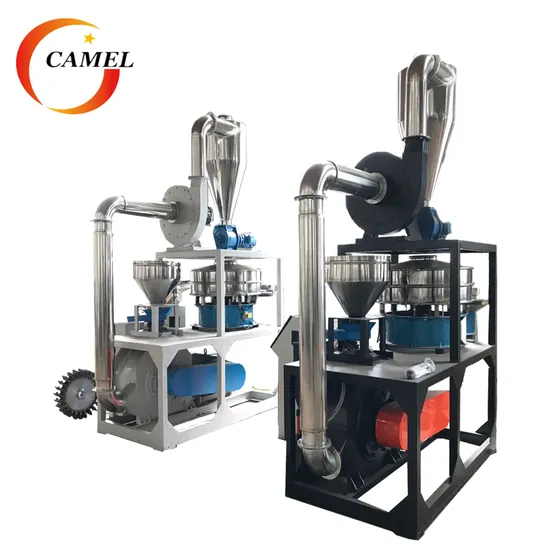

PVC PE Recycling Pulverizer Machine/PVC EVA Flake Scrap Crushing Grinding Machine/Milling Machine

Product Description

Disc Type plastic PE PP HDPE ABS PET pulverizer
Product Description
Main features of PE LDPE LLDPE pulverizer:
1.Low power consumption, high capacity 2.Simple structure and easy installation. 3.Host with the wind ,water circulation cooling system. 4.This Plastic pulverizer can deal with PE, LLDPE, LDPE, ABS, EVA etc. Technical data:

Model	MP-400	MP-500	MP-600	MP-800	MP-1000
Diameter of milling chamber(mm)	350	500	600	800	1000
Motor power (kw)	22-30	37-45	55	75	90/110
Cooling	Water cooling + natural cooling
Air Blower power(kw)	3	4	5.5	7.5	11
Fineness of powder	10 to 100 mesh (adjustable)
Output of pulverizer(kg/h)	100-120	150-200	250-300	400	500-800
Dimension (mm)	1800×1600 ×3800	1900×1700 ×3900	1900×1500 ×3000	2300×1900 ×4100	2500
Weight (kg)	1300	1600	1500	3200	3600

PVC pulverizer(rotor type) Main features 1. The capacity of this model is higher than other kind of miller. 2. Equipped with dust collection device to reduce dust pollution. 3. Close blower for discharge can reduce labor intensity of worker and save money for clients. 4.The cover of main machine can be opened for maintain. 5.The cooling system include the water and wind cooling for the machine body. Technical Data:

Model	SMF-400	SMF-500	SMF-600	SMF-800	SMF-1000
Main Motor power (kw)	30	37	45/55	55/75	90/110
Capacity (kg/h)	50-120	150-200	280-380	400-600	600-800
Material of conveying pipe	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel
Weight of PVC pulverizer (kg)	1000	1200	1800	2600	3200
Cooling	Wind cooling +water cooling

Detailed pictures Our Company FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock, it is according to what kind of machine you need Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: What is your terms of payment ? A: 30% T/T in advance ,70% balance before shipment or Negotiable If you have another question, please feel free to contact us as below

---
