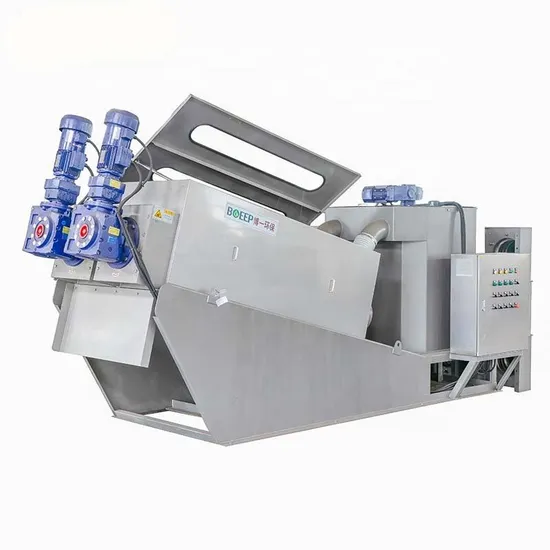

Septic Sewage Treatment Automatic Rotary Fan Multi-Disk Screw Press Sludge Dewatering Product

Product Description

Why Choose Us Products Description BOEEP volute screw press sludge dehydratering machine which uses the screw extrusion priciple is a new type of solide-liquid separation device. It reaches the goal of extrusion dewatering sludge by the powerful extrusion pressure of changing the screw diameter and distance along with the tiny spacing between moveable and fixed annular plates. 1-Low energy consumption.
2-Minimal water consumption.
3-Minimal noise.
4-Low polymer consumption.
5-No need for proceeding sludge thickening.
6-Suitable for any type of sludge even suitable for dewatering oil/grease rich sludge.
7-Minimal maintenance and operational cost.
8-Capable for working 24/7.

Model	DS Sludge Treating Capacity	Sludge Flow Treating Capacity
				10000mg/L	20000mg/L	30000mg/L	40000mg/L	50000mg/L
MYDL101	5-7kg/h	~0.5m3/h	~0.25m3/h	~0.2m3/h	~0.15m3/h	~0.14m3/h
MYDL131	10-14kg/h	~1m3/h	~0.5m3/h	~0.4m3/h	~0.3m3/h	~0.28m3/h
MYDL201	15-20kg/h	~1.5m3/h	~0.75m3/h	~0.6m3/h	~0.5m3/h	~0.4m3/h
MYDL202	30-40kg/h	~3m3/h	~1.5m3/h	~1.2m3/h	~1.0m3/h	~0.8m3/h
MYDL203	45-60kg/h	~4.5m3/h	~2.25m3/h	~1.8m3/h	~1.5m3/h	~1.2m3/h
MYDL301	50-70kg/h	~5m3/h	~2.5m3/h	~2m3/h	~1.5m3/h	~1.4m3/h
MYDL302	100-140kg/h	~10m3/h	~5m3/h	~4m3/h	~3m3/h	~2.8m3/h
MYDL303	150-210kg/h	~15m3/h	~7.5m3/h	~6m3/h	~4.5m3/h	~4.2m3/h
MYDL304	200-280kg/h	~20m3/h	~10m3/h	~8m3/h	~6m3/h	~5.6m3/h
MYDL351	100-120kg/h	~10m3/h	~5m3/h	~4m3/h	~3m3/h	~2.4m3/h
MYDL352	200-240kg/h	~20m3/h	~10m3/h	~8m3/h	~6m3/h	~4.8m3/h
MYDL353	300-360kg/h	~30m3/h	~15m3/h	~12m3/h	~9m3/h	~7.2m3/h
MYDL354	400-480kg/h	~40m3/h	~20m3/h	~16m3/h	~12m3/h	~9.6m3/h
MYDL401	130-160kg/h	~13m3/h	~6.5m3/h	~5m3/h	~4m3/h	~3.2m3/h
MYDL402	260-320kg/h	~26m3/h	~13m3/h	~10m3/h	~8m3/h	~6.4m3/h
MYDL403	390-480kg/h	~39m3/h	~19.5m3/h	~15m3/h	~12m3/h	~9.6m3/h
MYDL404	520-640kg/h	~52m3/h	~26m3/h	~20m3/h	~16m3/h	~12.8m3/h

Our Highlight Project Site About Us FAQ Q: Are you trading company or manufacture?
A: We are both manufacture and trading company. We have over 20 years' professional experience as a waste water treatment equipment manufacturer and engineering service enterprise.

Q: Where is your factory located?
A: Yangzhou City, which is very close to Shanghai with only less than 3 hours' driving.
Q: Do you provide OEM service?
A: Yes. Any required logos is available.
Q: How about the production capacity of your company?
A: Our factory covers area over 20,000M2 and produces machines 2000 sets per year.
Q: How could we trust you and your company? This is first time transaction?
A: Our company has more than 20 years professional experience. We cooperate over 1000 customers in China and overseas. We export nearly 40 countries all over the world. Welcome to our company and watch our plant production condition any time.
Q: What certificates do you have?
A: CE/ISO/SGS
Q: Do you offer after-sales service?
A: Yes. Engineers available.
Q: How long is your warranty?
A: One year after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.
Q: What about your delivery time?
A: Normally within 45 days against down payment.
Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.
Q: What kind of payment do you accept?
A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
Q: What kind of transportation do you offer?
A: Customers decide freight mode, Air, Land & Sea

---
