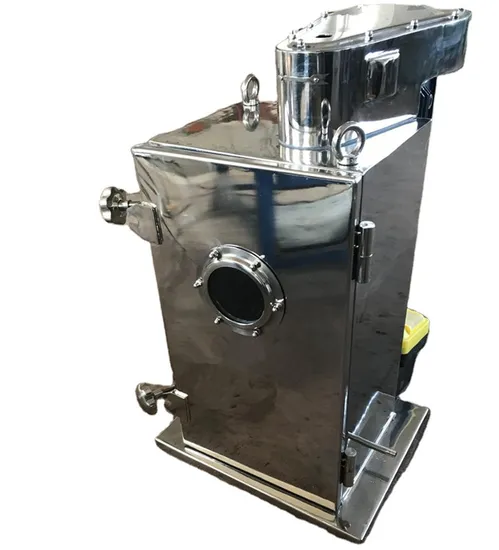

Lowest Price High Speed Fruit Gels Tubular Bowl Separating Centrifuge Separator Device

Product Description

Lowest Price High Speed Fruit Gels Tubular Bowl Separating Centrifuge Separator Device Product Description Overviews:
Tubular centrifuge is a kind of fine separation equipment. It is specialized for solid-liquid separation and liquid-liquid-solid separation for small solid particles and similar specific gravity difference. It is the equipment selected by food, dairy, industrial, chemical, agricultural and biological products industries.
We have two different modes of Tubular Centrifuge, one is Two-phase solid-liquid separation, the other is Three-phase solid-liquid-liquid separation, which can be selected according to your material characteristics and separation requirements.
Application:
GQ Clarification Type: mainly used for separating various suspensions that are difficult to separate, especially suitable for solid-liquid separation with low concentration, high viscosity, fine solid particles, and small solid-liquid specific gravity difference. For example, a high sugar content, numerous flocs, fine solid particles, and a small solid-liquid specific gravity difference.
GF Separation Type: it is mainly used to separate various emulsion that are difficult to separate, especially suitable for liquid-liquid separation with little difference in two-phase density (the specific gravity difference is greater than 0.1%), and liquid-liquid solid three-phase separation with a small amount of impurities. Separation of oil products, transformer oil, dehydration and dewaxing of edible oil, turbine oil, biodiesel, coal tar, lubricating oil, marine fuel oil, quenching oil; Separation of various syrup agents; Whole blood separation - separating plasma and blood cells from whole blood; Separation of biological products; Oil water separation, sewage treatment, etc.
The minimum separation particle size of a tubular centrifuge is 1 micrometer, which is particularly suitable for the separation, extraction, concentration, and clarification of materials with small specific gravity differences between liquid and solid phases, fine solid particle size, low content, and strong corrosive media. Working Principle The tubular centrifuge is composed of sliding bearing assembly, drum assembly, liquid collecting plate assembly, machine head assembly, body, etc. The power of the motor is transmitted to the belt pulley and the main shaft on the machine head through the belt and pressure pulley, so as to drive the drum to rotate around its own axis at high speed, forming a strong centrifugal force field on the inner wall of the drum. The material is injected into the drum through the bottom feed port, and under the strong centrifugal force, the material liquid is forced to move in layers. The light liquid is in the center of the drum, flows to the upper part of the drum, and is recovered through the liquid collecting tray; the heavy solid is thrown on the inner wall of the drum, and is manually discharged after shutdown.
Product More Pictures Detailed Photos Product Parameters

Model	GF/Q45	GF/Q75	GF/Q105	GF/QY125	GF/Q150
Bowl diameter(mm )	45	75	105	125	142
Effective height in bowl(mm)	280	430	730	735	700
Settling volume in bowl(L)	0.45	2	5.5	7.4	10
Bowl speed(r/min)	0-28000	20000	16000	15000	14000
Max separation factors	0-19800	20000	15025	15500	15570
Nozzle diameter(mm)	2.3	2.3.5	4.6.8.10	6.8.10	8.10.12
Inlet pressure(Mpa)	>0.05	>0.05	>0.05	>0.05	>0.05
Capacity(kg/h)	≈100	≈500	≈1200	≈2000	≈3000
Motor type	Series motor	Y90S-2	Y90S-2	Y90L-2	Y100L-2
Motor power(kw)	0.6	1.5	2.2	3.0	3.0
Motor speed(r/min)	0-4500	2840	2880	2880	2880
Size(mm)	580*650*750	800*400*1200	800*700*1600	800*700*1600	800*700*1600
Weight(Kg)	120	300	400	610	520

Packaging & Shipping Company Profile Our Services:
Pre-Service:1. 24 hours online consult and service;2. Introduce the product to the customer in detail, answer the question raised by customer carefully;3. Make different plans for choice according to the needs and requirements of customers.After-sale Service:1. Help to install and debug the equipment;2. Provide 24 hours technical support by e-mail or phone;3. Keep sufficient replaceable spare parts;4. Help customers solve any other questions about products or other aspect;5. Establish long-term and friendly relationship.Service Commitment:1. We will provide one-year warranty period to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.2. Consultant services for whole machine life, 24 hours technical support by email and telephone.3. Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
Our Honor:
Customer Visit:
Our Company:
LIAOYANG WANDA MACHINERY CO.,LTD is specialized in design, development, manufacture and sale of industrial, chemical centrifuge separator machines. Our products include disc centrifuge separator, tubular centrifuge separator, decanter centrifuge separator and plate series centrifuge separator machine and so on.
Looking to the future with a commitment to design innovation and quality products, supported by an outstanding level of customer service. The unexcelled quality machines can be easily obtained from us because we maintain the quality and standard of our products from incoming raw materials to the finished products. Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process.
Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our team is full of experienced and qualified professionals, who have sound knowledge about the quality of our machines. Our products are far sold to Europe, U.S.A., and the southeast Asia. They are well received by customers both at home and abroad.
FAQ 1. What data is required to confirm the model?(1) Materials to be separated (2) Treatment capacity per hour (3) Solid content proportion2. What certificates do you have?We can provide CE, ISO 9001, etc.3. What is the warranty period of the equipment?Normally 1 year warranty.4. Can we visit your factory?Of course, we sincerely invite you to visit, if it's not convenient for you, you can visit our factory and solve problems through video conference.5. Can we bring our own materials to your factory for experiments?Of course, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site.6. Can it be customized?Of course, our equipment can be customized according to the actual requirements of customers.7. How long is the construction period?It's about 15-30 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.8. Will you provide installation services?If you need, we can arrange professional technicians and engineers to install and debug on site.

---
