US$1,120.00-1,380.00
|
3 Sets
(MOQ)
|
Basic Info.
Controlling Mode
Artificial
Face Milling Capacity
80mm
Packing Size
820X760X1150mm
Transport Package
Wooden Case
Production Capacity
150-200 Sets /Month
Product Description
Features
1.Accurate, universal precision drilling-milling machine;
2.Heavy solid casting;
3.Very wide speed range;
4.Very smooth running due to ground gear;
5.Spindle is supported by high precision taper roller bearing;
6.Mill head may be tilted right and left;
7.Positive and easy o read depth gauge;
8.Adjustable taper gibs of slideways;
9.High precision manual fine down feed.
| Specification |

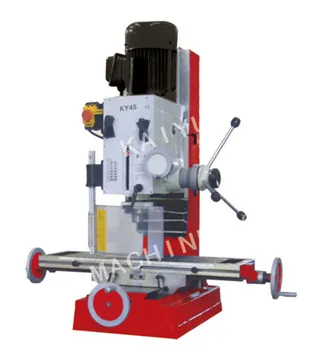

| Model No. | KY45 |
| Drilling capacity | 40mm |
| Face milling capacity | 80mm |
| End milling capacity | 32mm |
| Spindle taper | MT4/ISO30 |
| Sleeve travel | 120mm |
| speed range | 75-1600 rpm |
| speed step | 6 |
| Head rotation | ±90° |
| Table size | 800x240mm |
| X-axis travel | 560mm |
| Y-axis travel | 300mm |
| Z-axis travel | 210mm |
| T-slot | 14mm |
| Motor | 1.1KW |
| Packing size | 820x760x1150mm |
| Net weight | 320kg |
| Standard Accessories |
| Drill chuck 3-16mm | 1 set |
| Arbor MT4/B16, M12 | 1 set |
| Drawbar MT4/M12 | 1 set |
| Operating tools | 1 set |
| Optional Accessories |
| Stand & chip tray |
| 2-speed motor (75-3200rpm/12) |
| Tapping function |
| Coolant system |
| Halogen working lamp |
| Automatic spindle (0.1,0.2,0.3 mm/r) |
| Keyless drill chuck 3-16mm |
| ER32/6pcs collet chuck (6-20mm) |
| Milling vise |
| End mill 7pcs (4-16mm) |
| 58pcs of clamping kits/M12-13.7mm |
| Power feed (X,Y) |
| Digital readout |
>>
