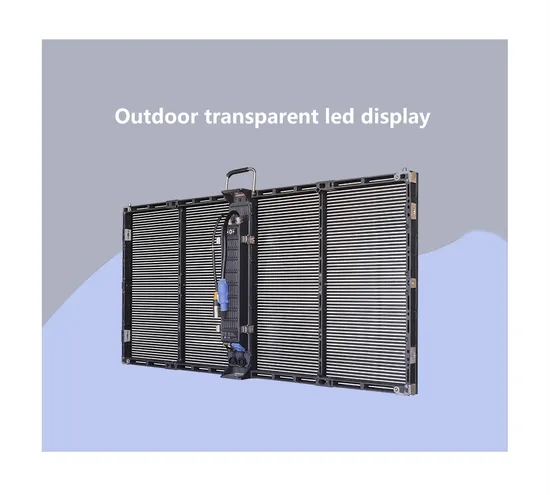

Hafond Outdoor P2.8-5.6/P3.125/P3.91-7.82 Factory High Resolution 3840Hz Transparent LED Display

Product Description

Product Name:Outdoor Transparent LED Display P2.8-5.6/P3.125/P3.91-7.82
Description: The HAFOND Outdoor Transparent LED Display is an innovative, high-performance solution designed for large-scale, dynamic outdoor signage applications. Combining cutting-edge LED technology with a sleek, transparent design, this display allows businesses to engage audiences while maintaining visibility through the screen. Whether for digital billboards, building facades, transportation hubs, or shopping malls, this display offers a unique solution for advertising and information-sharing without obstructing the view of the surroundings.
The transparent nature of the LED screen allows up to 70% visibility, ensuring that it blends seamlessly into its environment, while still providing high-impact visuals in outdoor settings. Featuring high brightness, advanced weatherproofing, and long lifespan, HAFOND's Outdoor Transparent LED Display is built to perform in the most demanding outdoor environments, even under direct sunlight or harsh weather condition

Specification
	P2.6-5.2	P2.8-5.6	P3.125	P3.91-7.82	P7.82-7.82
Pixel Pitch	2.6-5.2mm	2.8-5.6mm	3.125-3.125mm	3.91-7.82mm	7.82mm-7,82mm
LED	SMD1921	SMD1921	SMD1415	SMD1921	SMD1921
DrivingIC	ICN2038S/2153	ICN2038S/2153	SM16218/16318	ICN2038S/2153	ICN2038S/2153
Scan Mode	12 scan	11 scan	9 scan	8 scan	4 scan
Module Size(W*H)	500mm*125mm	500mm*125mm	500mm*62.5mm	500mm*125mm	500mm*125mm
Module Resolution	192*24dots	176*22dots	160*20dots	128*16dots	64*16dots
Module Pixels	4608dots	3872dots	3200dots	2048dots	1024dots
Cabinet Size(W*H)	1000mm*1000mm*75m
Cabinet Resolution	384*192dots	352*176dots	320*320dots	256*128dots	128*128dots
Transparency	>65%	>70%	>55%	>75%	>75%
ModuleSize	16pcS	16pCS	32pcs	16pcs	16pcS
Density	73728PX/m	61952PX/m	102400PX/m	32768PX/m	16384PX/m
Cabinet Material	aluminum
Cabinet Weight	10KG
Brightness	4500-5000cd/m
ViewAngle	H140°,W140°
Best View Distance	>3m
Gray Scale	16bit
Refresh Rate	1920/3840HZ	1920/3840HZ	>2600/3840HZ	1920/3840HZ	1920/3840HZ
Frame Rate	60Hz/s
nput Voltage	DC5-3.5V/AC85-240V
Max/Avg Powe	800/200W/sqm
MTBF	>10,000 H
Life Spa	>100,000 H
IP Grade	IP30
Working Temperature	40°C~+40ºC
Working humidity	15%-90%RH
Maintenance Way	Front/Rear
Installation Way	Hanging/Stacking
Operation System	Nova star

High Transparency: With up to 70% transparency, these LED displays provide a futuristic look without blocking the view behind them, perfect for large glass surfaces and facades.
High Brightness: Featuring brightness levels of up to 7000 nits, ensuring vivid, sharp visuals even in direct sunlight or high ambient light environments.
Weatherproof & Durable: Designed to withstand harsh outdoor environments, with high IP rating for protection against dust, rain, and extreme temperatures.
Energy Efficient: Despite its high brightness and performance, the display is energy-efficient, reducing overall operational costs.
Seamless Integration: Can be installed on building facades, windows, and even outdoor advertising structures with minimal impact on the environment and surroundings.
Modular Design: Flexible, scalable design makes it easy to create larger displays, from billboards to entire building facades, by linking multiple modules.
Application Outdoor transparent materials can be widely used in various fields. For example, in architecture, they can be applied to the construction of outdoor glass walkways, providing a unique visual experience while ensuring safety. In exhibition halls and museums, outdoor transparent display cases can be used to showcase precious artifacts, allowing visitors to view the exhibits clearly while protecting them from environmental damage. At airports and train stations, outdoor transparent signage can be installed to provide clear directions and information to passengers. In corporate offices and hotels, outdoor transparent partitions can be used to create open and bright spaces while maintaining privacy. Additionally, outdoor transparent materials can also be used in the production of outdoor furniture, adding a modern and stylish touch to outdoor spaces.

Certifications
Our Advantages Our team memebers have very rich experience working in led display field (since year 2016), and we are all working many years on exporting department, which means we can assist you to make shipment with forwarder, to save your time and energy on importing procedure.
Our products range is wide, range from indoor series to outdoor series, SMD and GOB, can satisfy your different project's requirements. We have professional engineer on assiting you with projects solution, screen installation, screen configuration. What's more, we not only care about quality, service, our price positioning is also very reasonable very affordable in led screen market.
Company Profile
Founded in 2014, HAFOND CO., LTD specializes in the design and manufacturing of high-quality indoor and outdoor LED display solutions. Throughout the years, we've dedicated ourselves to becoming a trusted name in the LED display market, known for our commitment to technology and customer service.
With our products now available in numerous countries and regions, HAFOND CO., LTD prides itself on building lasting relationships with clients, prioritizing their needs, and ensuring their satisfaction with every project. We are not just another LED display provider; we are a partner committed to adding value to your business.

---
