Basic Info.
Machining Process
Vibrating
Structure
Connect with Poker
Vibrating Amplitude
1.6mm
Certification
ISO9001: 2000
Engine Power
5.0 HP, 5.5 HP
Vibration Frequency (V.P.M)
10, 000-12, 000
Vibration Amplitude
0.9 mm, 1.1 mm
Rotation Speed of Engine
3600 Rpm
Default Poker Diameter
36 mm
Default Poker Length
6000 mm
Gross Weight of Engine
23 Kgs
Gross Weight of Poker
17 Kgs
Production Capacity
1000PC/Month
Product Description
PRODUCT DESCRIPTION

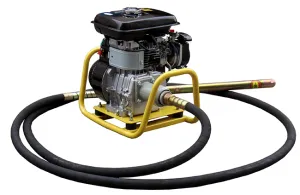

Professional ro bin concrete vibrator with EY20 5.0HP engine
Ro bin Concrete vibrator, work with concrete vibrator shaft, Is suitable to the commodity concrete, widely applies to the bridge, the harbor
construction, the large-scale dam, the water wheel power plant, the high-level building base pours into post picket, crowded reinforcing
steel bar net coagulation dirt wall and major and medium small architectural engineering.
Gasoline Ro bin Engine Vibrator Coupling Choice
1. DYNAPAC Coupling
2. Japanese Coupling
3. Ball Type Coupling
4. Pin Type Coupling
5. Other coupling like Australia type, Russia type can be available, based on customers' choice.
Gasoline Ro bin Engine Vibrator Specification:
Model | SAV-H | SAV-R | SAV-L | SAV-K |
| Engine | Air-cooled, 4-cycle,single cyliner |
| Engine Type | Petrol, Honda GX160 | Petrol, Ro bin EY20 | Petrol, Lifan 168F | Diesel, Kama 170F |
| Power | 5.5hp/4.0kw | 5.0hp/3.6kw | 5.5hp/4.0kw | 3.8hp/2.8kw |
| Rotary Speed | 3600rpm |
| Coupling Choice | DYNAPAC Type, Pin Type, Ball Type |
| Applications | Concrete vibrator, submersible flexible pump |
| Weight | 22kg(49lbs) | 25kg(55lbs) | 24(53lbs) | 34(75lbs) |
| Packing | 53*38*54cm(21*15*21in) |
| Model | SAVH1 | SAVR2 | SAVC 3 | SAVG 4 | GVD |
| Engine type | Petrol, Honda GX160 | Petrol, Ro bin EY20 | Petrol, Ro bin EY20 copy | Petrol, Wilson 168F | Diesel engine 170F |
| Engine | 5.5 | 5 | 5 | 5.5 | 3.8 |
| Power(hp) | 22 | 23 | 23 | 2.2 | 31 |
| Rotation speed(r/min) | 3600 | 3600 | 3600 | 3600 | 3600 |
| Coupling | Chinese type, Japanese type, Malaysian type | Chinese type, Japanese type, Malaysian type | Chinese type, Japanese type, Malaysian type | Chinese type, Japanese type, Malaysian type | Chinese type, Japanese type, Malaysian type |
Technical Specification
Model
| ZV25
| ZV28
| ZV32
| ZV35
| ZV38
| ZV45
| ZV50
| ZV60
| ZV70
|
Dia.of vibrator head(mm)
| 25
| 28
| 32
| 35
| 38
| 45
| 50
| 60
| 70
|
Vibrating Frequency(Hz)
| 230
| 230
| 210
| 200
| 200
| 200
| 200
| 200
| 200
|
Dia.of Flexible Hose
(mm)
| outside
| 24
| 25
| 30
| 30
| 30
| 32
| 36
| 36
| 36
|
inner
| 13
| 14
| 16
| 16
| 16
| 18
| 20
| 20
| 20
|
Dia.of Flexible Shaft(mm)
| 8
| 8
| 8
| 10
| 10
| 12
| 13
| 13
| 13
|
Amplitude(mm)
| 1.10
| 1.11
| 1.13
| 1.15
| 1.18
| 1.2
| 1.21
| 1.28
| 1.32
|
Weight(kg)(6m)
| 9.7
| 10
| 10.6
| 14.6
| 15.2
| 17.5
| 21.7
| 22.7
| 24.2
|
Dimension(mm)(6m)
| 830×650×55
| 830×650×75
|
Hose Length(mm)
| 1~12
|
Couling
| Chinese Type,Japanese Type,Malaysia Type,Australian Type
|
>>
