Factory High Pressure Flip Single Plate Thin Stainless Steel Wafer Check Valve Fitting SS316 304 One-Way Valves

Product Description

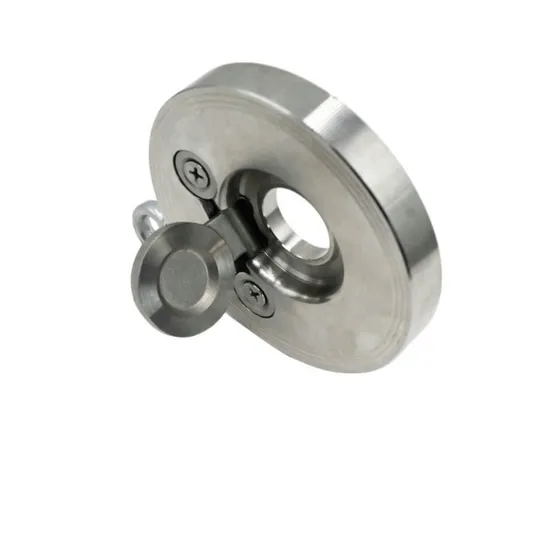

Stainless Steel 304/316 Single plate Thin Single Disc Swing Wafer Check Valve CF8 DN100 PN16The working principle of a Thin Single Disc Plate Check Valve is as follows:
Normal Flow: When the medium flows in the designed direction, the disc (single plate) opens under the pressure of the medium, allowing it to pass through.
Reverse Flow: When the medium flows in the reverse direction or the flow rate decreases, the disc quickly closes under the action of a spring or its own weight, preventing backflow.
Key Features:
Compact structure, suitable for limited installation space.Quick response to avoid water hammer.Single disc design reduces flow resistance.It is widely used for one-way flow control in pipelines carrying liquids, gases, and other media.

item	value
Warranty	1 year
Type	Metal Check Valves, Single Disc Swing Check Valve
Customized support	OEM, ODM
Place of Origin	China
Brand Name	WELFLOW
Model Number	H74W-16P
Application	General
Temperature of Media	Normal Temperature
Power	Mechanical
Media	water
Port Size	DN40-DN600
Structure	Check
Body material	Stainless Steel 304/316L
Pressure	1.0~1.6MPa
Working Temperature	-20ºC~425ºC
Working medium	Air Water Oil Gas Acid
Connection	Wafer Connection

QUESTION?	ANSWER
1. Are you a factory?	Yes, Welflow is a factory located in Wenzhou, Zhejiang, China.
2. Do you have any requirements of MOQ?	No limited to MOQ but the difference in unit price.
3. Payment Terms	Typically 30% T/T as deposit, 70% against copy of BL/ Or balance L/C at sight.
4. Nearly Sea Port	Ningbo or Shanghai Port
5. Terms:	FOB Ningbo/Shanghai, CIF, FCA, etc.
6. Delivery Time:	Typically, it is 30-35 days after receiving the deposit payment. However, almost all of the items we have stock in 304.
7. Could you accept color Marks or Color Boxes?	Yes, both are acceptable; we have experience with them.
8. Could you accept marking our logo on the products?	Yes, on the handle or the bodies, both are okay. 1. Print on the Handle (NO MOQ requirements) 2. Laser Marking. (NO MOQ requirements) 3. Carvings(NO MOQ requirements) 4. Casting on the bodies (Has MOQ requirements)
9. Do you have Material Certificates?	Yes, if required, Each item will be laser marked with Heat NO and the material certificates.
10. How do you deal with customer complaints, such as quality issues?	This is an issue we take very seriously. As long as it is confirmed to be a quality issue, we will take full responsibility. 1. exchange or refund is acceptable. It mainly depends on how you need to deal with it.

At Welflow Valve, we're dedicated to providing you with high-quality stainless steel valves and fittings. We understand that as a business owner or manager, you value reliability and excellent service, which is why we prioritize the completeness of our supply chain.
Our products, including ball valves, check valves, gate valves, globe valves, thread fittings, and flanges, are competitively priced without compromising quality. We take great care to ensure our product meets high quality and performance standards.
One of our key strengths is our supply chain, built on trust and long-term partnerships. We work closely with our manufacturing agents and logistics partners to ensure that our products reach you on time and in perfect condition.
Our team of experts is always available to provide technical support and help you choose the best product for your specific needs. We understand that every business is unique and are committed to providing personalized service that meets your needs.
BALL VALVES BY BODY STRUCTUREOne Piece Ball Valve (1PC)
The body is formed from a single body piece in a one-piece ball valve. The ball is permanently fixed within the valve body, and the ends are threaded or welded. One-piece ball valves are compact and cost-effective, commonly used in applications with lower pressure and smaller sizes.Two Piece Ball Valve (2PC)
This type of ball valve consists of two separate pieces connected with thread or bolts. The body is divided into two halves, allowing easy access to the internal components, including the ball and seats. Two-piece ball valves are commonly used in applications requiring regular maintenance or inspection. Three Piece Ball Valve (3PC)
Three-piece ball valves are constructed with three separate pieces: a body and two end caps. The end caps are connected to the body using bolts, allowing easy disassembly and maintenance. This ball valve type offers greater flexibility for repairing or replacing internal components.

---
