Product Details
Product Description
Product Description
1. Application:

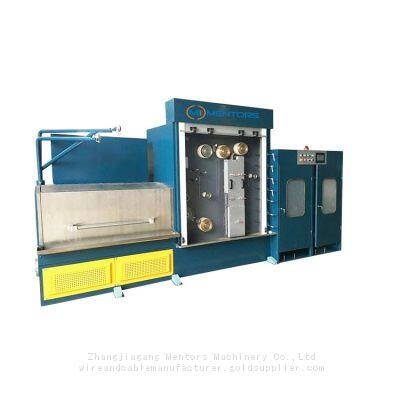

This machine is used for drawing and annealing copper wire with wire range 0.12-0.35mm , followed by single or dual spool take-up.
2. Main feature:
1)Max.Dies Qty: 24
2)Outlet wire size: 0.12-0.35mm
3)Max speed: 1800m/min
4)Dual Inverter Control
3. Parameters:
Machine type
| SY-DT24.2A
|
Inverter control
| Dual inverter control
|
Drawing dies No./max.
| 24×2
|
Inlet diameter
| Ø 0.5- 1.0mm
|
Out diameter
| Ø0.12- 0.35mm
|
Drawing line speed
| 1800mpm/max
|
Slip ratio of m/c
| 13%
|
Fix speed capstan slip ratio
| 8%
|
Frame
| Welded by steel plate
|
Capstan
| Ceramic plasma capstan
|
Main motor
| 18.5 kw
|
Spooler motor
| 4kw
|
Annealing voltage
| DC 0-60V
|
Annealing current
| DC 300A
|
Protection type
| Steam or nitrogen
|
Spool bobbin size
| Ø 300mm or customization
|
Transmission type
| By timing belts
|
Spooler control
| PID Synchronous spooler
|
Detecting device
| Weight balance by swing arm
|
Tension control
| Weight balance type
|
Lubrication type
| Spray type
|
Brake
| Magnetic brake
|
Power source
| 380v 50/60 HZ or customization
|
4.Advantage:
(1) Double drivers ensure precisely tension and minimum ratio of the wire.
(2) Easy string-up and maintenance operations.
(3) Energy saving and excellent wire surface quality.
(4) Best choice for diversify products manufacturer.
(5)Two wires, energy saving and space saving, high efficiency.
>>
