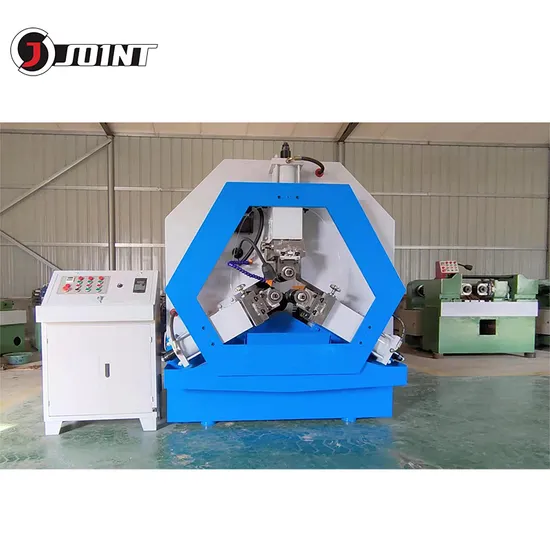

Zp-65 3-Axis Thread Rolling Machine Suitable for Thread Rolling of Hollow Pipe Fittings

Product Description

Introduction:
The whole body casting structure is strong, the manufacture is excellent, the maintenance is convenient, and the price is reasonable, so it is very popular among users. This product can be processed radially and axially. With the corresponding thread rolling wheel, it can process ordinary bolts, special-shaped bolts, and through buckles. The wire is especially suitable for rolling the threads of hollow pipe fittings.

Product Characteristics:
The three-axis thread hobbing machine can easily process various tubular threads, and is also suitable for various knurling, reticulated, straight lines and other operations; Equal triangle support operation is adopted to ensure the roundness and perpendicularity, so as to facilitate passing through the go gauge and no go gauge; It is driven by oil pressure (hydraulic pressure). It is easy to operate, stable and durable. It is widely used in the wire rolling processing of oil pipe joints, motorcycle parts, air conditioning pipe evaporators, various fasteners, condenser copper pipes and other workpieces.
Specification:

Model		Unit	ZP-65
Rolling Force		KN	200
Rolling Diameter		mm	25-90
Rolling Pitch		mm	1-12
Max.Diameter of Rolling Wheel		mm	125-180
Thread Roller Aperture		mm	54
Max.Width of Rolling Wheel		mm	100
Number of Spindles			3
Spindle Tilt Angle			8
Spindle Tilt Angle		r/m	1-50 Stepless Speed Regulation
Rolling Power		kw	11
Hydraulic Power		kw	5.5
Cooling Power		kw	0.12
Weight		kg	3000
Dimension		mm	2000*1600*1700

Applicant Industry:
Package:

Company Information:
Shenzhen Joint Technology CO.,LTD., was established in 1995. One of our headquarters is located in PingHu town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality for more than two decades.
There are eight series of products-high speed turret milling machine, precision surface grinding machine, EDM machine tool, CNC milling machine, NC milling machine, Gantry type machine center, CNC engraving machine, and CNC lathe machine
Our own brand "JOINT " Has been the top quality machine's signal in domestic sales, JOINT also has been recognized as " GUANGDONG Famous Brand ", and milling machine was recognized as " TOP 10 Famous Brand of Milling machine " in China. Our product had been exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation there, Welcome your visit !

---
