Welcome to visit

Manual Stone Edge Cutting Machine with Diamond Disc for Granite Marble

US$3,000.00
1-2 Pieces
US$2,900.00
3-6 Pieces
US$2,800.00
7+ Pieces

Basic Info.

Model NO.
ZLQ16-2700&ZLQ16-3200&ZLQ23-3000
Type
Stone Chamfering Machine
Usage
Ceramics, Glass, Jadestone, Cement Brick, Concrete Curb, Granite, Marble
Application
Machinery & Hardware, Stone Industry
Source Voltage
380V/220V
Automation
Semi-automatic
Cutting Ability
High Speed
Control
Electric
Certification
ISO, CE
Main Motor Power
11-15kw
Water Consumption
2t/H
Head
Electrical Filp 45degree
Transport Package
Plastic Film Packaging
Specification
casting table
Trademark
ZL MACHINE
Origin
Taizhou, Zhejiang Province
HS Code
8464209000
Production Capacity
10000

Product Description

Product Parameters

Mode ZLQ16-2700 ZLQ16-3200 ZLQ23-3000 Unit
Worktable size 2500*800 3000*800 2700*800 mm
Head flip electric electric electric
Maximum Processing 2750*1200 3200*1200 3000*1200 mm
Blade diameter 350-600 350-600 350-425 mm
Main motor power 11 11 15 kw
Total power 14 14 19 kw
Dimensions 4200*2100*1900 4800*2100*1900 4450*2100*1900 mm
Water consumption 2 2 2 m³/h
Total weight 1.35 1.6 1.4 t
Price 3000 3200 3000 USD
Option:Electric table +500 USD

Product Description

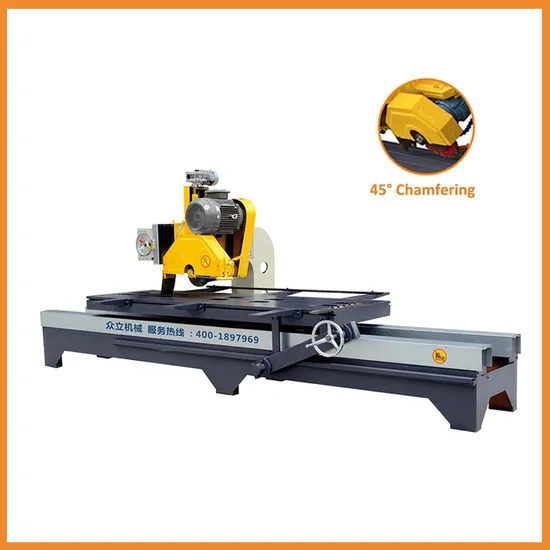

For chamfering marble, granite, and quartz stone, we supply Manual Stone Cutting Machines of the models ZLQ16-2700, 3200, and ZLQ23-3000. A simple machine, the Manual Stone Cutting Machine cuts slabs and chamfer edges. The table is moved by hand, and the chamfering head is turned by a motor. Casting worktables will be used for long-lasting Everyone can use the machine simply.
option: electric table
We also provide OEM/ODM production machine service.
