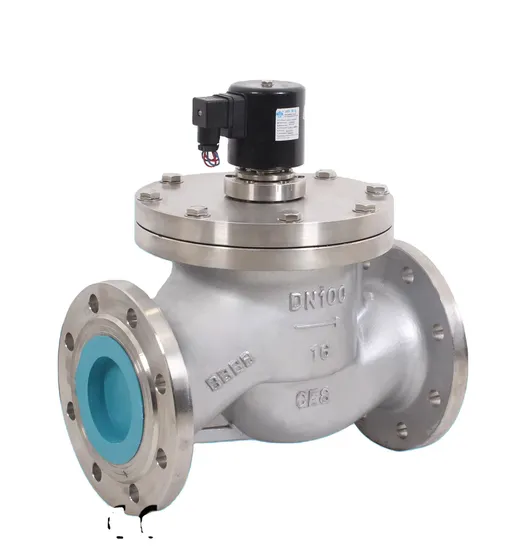

Big Size Stainless Steel Music Fountain Solenoid Valve (YCDF3)

Product Description

Product Description

Characteristic :	• IP68 coil suitable for music fountain and other applications need to put valve underwater • Long life time
Medium:	water
Temperature:	NBR:-10ºC~80ºC EPDM:-30ºC~120ºC VITON:-20ºC~150ºC
Pressure:	0-2.5MPa
Port size:	1/2'-2'
Port thread:	G,NPT
Orifice(mm):	12-50mm
Voltage:	DC-12V; 24V; AC-AC230V
Tolerance:	±10%
Coil:	F14, 20VA(AC),15W(DC), IP65,100%ED F24, 20VA(AC),15W(DC), IP65,100%ED

Detailed Photos
Product Parameters
Certifications
Packaging & Shipping
Company Profile
After Sales Service
Paratmeter:
YCDF3 series normally closed, music fountain solenoid valve


17 years experience in solenoid valves manufacturering.Now making ODM for ASCO and PARKER.10000 square meters factory, 30% customized products.


Why choose us ?
7*24 online EMAIL service!
1.We are OEM maker of solenoid valves for ASCO and Parker .
2.We have solenoid valve expert with 18 years experience in solenoid valve designing.

4. We have more than 2000 kinds of solenoid valves with more than 10000 square meters factory.
5.100% QC inspection Before Shippment.
6. CE/RoHS CQC approved products.


1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4.Delivery Time: 2-5 days for samples; 15-25 days for batch goods.


1. Payment: T/T, Western Union, LC; 30% deposits; 70% balance before goods ready.
2. MOQ: 1PC
3. Warranty : one and half years
4. Package Informations: The volume of the box is 31cmx21cmx25cm


Q1: What is the Warranty for the solenoid valves?
A1: For the valves,we have one and half year warranty.If any quality problems on our side occured in this period ,we will make replacement.

Q2:: What is NO and NC?
A2: NO stands for normally open, that is , valve keeps open without power.If connect it with power, the valve will get closed.NC stands for normally closed,that is valve keeps closed without power.If connect it with power, the valve will get open.

Q.3: What is the assembly way of solenoid valves?
A.3 we suggest to make horizontal installation to enlarge life time,but it can be vertical installation if have special request.

Q4:Is there cheap shipping cost to import to our country?
A4: For small order,express will be best.And for bulk order,sea ship way is best but take much time. For urgent orders,we suggest to ship by air.

Q5:Can we make customized product?
A5: Yes, we are good at making customized products.More than 30% of our products are customized products. We have successfully customized for customer from various fields from USA,Norway.Australia, Germany ect.
