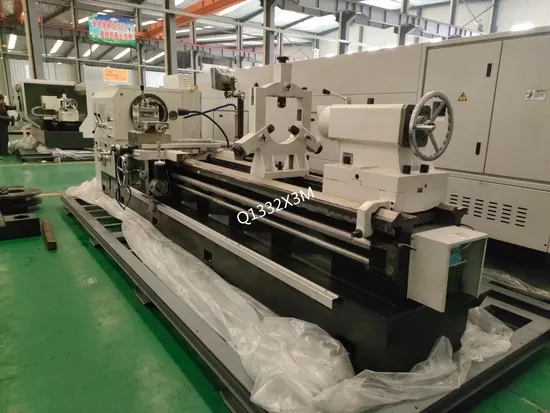

Q1332X3m Engine Conventional Horizontal Pipe Threading Lathe

Product Description

Q1332 pipe threading lathe
Pipe threading lathe has Big spindle bore and double chuck allows clamp and process big diameter pipes
Integral machine bed adopts high strength iron to realize high rigidity and precision
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance
·Equipped with taper guide bar device this enables the machine to process taper threads
Product Parameters

SPECIFICATION		NT	Q1313	Q1319C	Q1322C	Q1325C	Q1327C
Capacity	Swing over bed	mm	630/800	630/800	630/800	800	800
	Swing over cross slide	mm	340/520	340/520	340/520	480	480
	Distance between centers	mm	1500/3000/6000 more	1500/3000/6000 more	1500/3000/6000 more	1500/3000/6000 more	1500/3000/6000more
	Pipe threading range	mm	30-126	50-193	50-220	50-250	50-270
Spindle	Guideway width	mm	550	550	550	600	600
	Max.load capacity		3	3	3	4	4
	Spindle bore	mm	130	206	225	255	280
	Spindle speed steps		FWD.18step/REV.9step	NF.4 steps		NF.4 steps		NF.4 steps
	Spindle speed range	rpm	30-800	20-600		20-420
	Chuck	mm	φ400 3-jaw manua	φ520 4-jaw manual		φ630 4jaw manual		φ680 4jaw manual
turret	turret/tool post		Manual 4 position	Manual 4 position		Manual 4 position
	Tool shank size	mm	30x30	32x 32	32x32	32x32	32x32
feed	X axis travel	mm	320/420	320/420	320/420	420	420
	Z axis travel	mm	1350/2850-	1350/2850-	1350/2850-	1250/2750	1250/2750
	X axis feed grade/range	mm	64/0.1-1.52	22/0.02-0.45	22/0.02-0.45	22/0.02-0.45	22/0.02-0.45
	Z axis feed grade/range	mm/r	64/1.6-24.3	26/0.07-1.33	26/0.07-1.33	26/0.07-1.33	26/0.07-1.33
	X axis rapid traverse	mmi	2300	2300	2300	2300	2300
	Z axis rapid traverse	mma	4000	4000	4000	4000	4000
	Metric thread	mm	50/1-24	1-15	1-15	1-15	1-15
	Inch thread	T.PI	26/14-1	14-1	14-1	14-1	4-1
	tailstock quill diameter	mm	φ100	100	100	φ120	120
Tailstock	Tailstock taper		MT5	WT5	MT5	MT6	MT6
	tailstock quill travel	mm	250	50	250	250	250
motor	Main spindle motor	kW	11	11	11	15	15
	Rapid transversal motor	kW	0.3	0.3	0.3	1.1	1.1
	Cootlant pump motor	kW	0.125	0.125	0.125	0.125	.125
Dimension	Width x Height	mm	1500x1500	1550x1540	1650x1550	1700x1600	1700x1600
	Length	mm	3700/5200	3700/5200	3700/5200	4100/5600	4100/5600
Weight	Net weight		4.0/5.2	4.3/5.5	4.5/5.7	8.0/9.0	8.0/9.0
Please note:machine bed length can customize according to real work demand.

SPECIFICATION		UNIT	Q1327	Q1332	Q1338	Q1343	Q1350
Capacity	Swing over bed	mm	1000	1000	1000	1000	1200
	Swing over cross slide	mm	610	610	610	610	710
	distance between centers	mm	1500/3000/6000 more	1500/3000/6000 more	1500/3000/6000 more	1500/3000/6000 more	1500/3000/6000more
	Pipe threading range	mm	130-270	190-320	190-380	270-430	330-510
Spindle	Guideway width	mm	755	755	755	755	765
	Max.load capacity		6	6	6	6	6
	Spindle bore	mm	280	330	390	440	520
	Spindle speed steps		FWD.12 steps	FWD . 9step	FWD.9 steps	FWD.9 steps	FWD.9 steps
	Spindle speed range	pm	16-380	7.5-280	6-205	4.9-180	4.9-180
	Chuck	mm	φ800manual four jaw	φ780 electrical four jaw	850 electrical four jaw	φ1000 electrical four jaw
Turret	turret/tool post		Manual 4 station
	tool shank size	mm	45x45	45x45	45x45	45x45	45x45
feed	X axis travel	mm	520	520	520	520	520
	Z axis travel	mm	1350/2850-5850 more	1350/2850-5850 more	1350/2850-5850 more	1350/2850-5850 more	1350/2850-5850 more
	X axis feed grade/range		40/0.05-1.5	32/0.05-0.75	32/0.05-0.75	32/0.05-0.75	2/0.05-0.75
	Z axis feed grade/range	mm	40/0.1-3	32/0.1-1.5	32/0.1-1.5	32/0.1-1.5	32/0.1-1.5
	X axis rapid traverse	Mm/min	1870	1870	1870	187	187
	Z axis rapid traverse	Mm/min	3740	3740	3740	3740	3740
	Metric thread	mm	30/1-3	23/1-15	23/1-15	23/1-15	23/1-15
	Inch thread	T.P.I	27/28-1	22/28-2	22/28-2	2/28-2	2/28-2
	tailstock quill diameter	mm	φ160	φ160	φ160	φ160	φ160
Tailstock	Tailstock taper		MT6	MT6	MT6	MT6	MT6
	tailstock quill travel	mm	300	300	300	300	300
Motor	Main spindle motor	kW	22	22	22	22	22
	Rapid transversal motor	kW	1.5	1.5	1.5	1.5	1.5
	Coolant pump motor	kW	0.126	0.126	0.125	0.125	0.125
Dimension	Width x Height	mm	2100x1600	2100x1650	2100×1700	2100×1700	2100×1850
	length	mm	4800/6300-	4900/6400-	4900/6400-	000/6500-	5000/6500-
Weight	Net weight	t	10.0/11.5-	11.5/13.0-	2.8/14-	13.0/14.5-	5.0/16.5-

pay term
Shipped per: BY SHIP
Payment Terms: 30% down payment T/T before order, and 70% TT before exfactory.
Price Terms: FOB Qingdao, china
Delivery Time:Eighty days since received down payment within a week at PI date
Warrenty period of main machines: One years, free part within one year if normal use.
