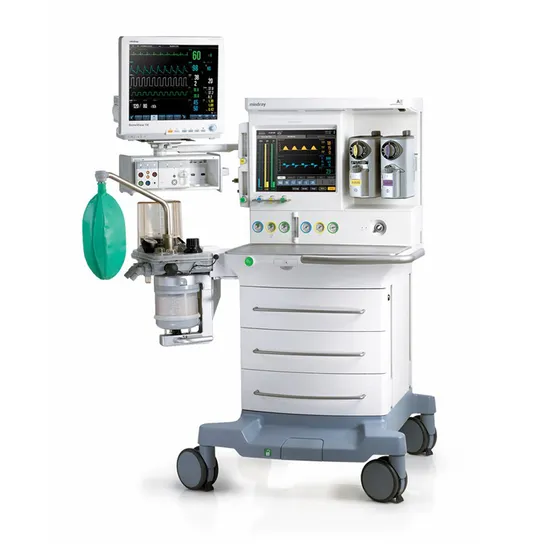

Mindray A5 Hospital Medical Equipment Anesthesia Workstation Human Anesthesia Machine

Product Description

Specification
The A5 Advantage offers modular scalability with enhanced functionality for effective care across a wide range of patient types, from neonate to bariatrics. Standard safety features, advanced ventilation modes, central locking brake, and a high-pressure O2 port support initial clinical needs with advanced ventilation modes, lung protective strategies and workflow tools available for true scalable functionality. Direct HL7 data output provides industry standard connectivity for AIMS and EMR systems, reducing the expense associated with data integration. The scalable A5 is an ideal choice for hospital standardization and cost-effective anesthesia management.
Standard Features
15″ color touchscreen with digital flow meters, backup touchpad and customizable settings eliminate deep menus, control knobs, and dedicated buttons
Standard ventilation modes include VCV, CPAP/PS, PCV, PCV-VG, SIMV-VC, SIMV-PC and Manual breathing mode with respiratory monitoring with many optional advanced modes offered
Automatic compliance and fresh gas compensation maintain accurate tidal volumes
Standard 3-year warranty on Anesthesia Machine Systems
Safety Features
Ability to deliver O2/N2O/Air and vaporized agent regardless of power state
Auxiliary O2/Air flow meters deliver blended gas via nasal cannula, potentially reducing the risk of airway fire
High pressure O2 port supports jet ventilation
Warmed breathing system minimizes internal condensation
CO2 absorbent can be changed quickly during a case and uses non-proprietary pre-pack or loose fill soda lime
Easy to move machine with robust wheels, central brake, and integrated cable sweeps
2-hour battery back up
Optional Features
Advanced ventilation capabilities with SIMV-VG, Spirometry loops, and Cardiac bypass and supported lung protective strategies with APRV and Lung Recruitment
Optimizer™ low flow decision support tools help manage intraoperative fresh gas dynamics, visualize real time agent usage and quantify end of case agent consumption
Integrated Gas Analysis with Auto Agent ID, Capnography, and Age Calculated MAC value
Quick release APL valve reduces airway pressure while maintaining set limit
Flexible bag arm and three in-line vaporizer mount

item	value
Place of Origin	China
Brand Name	Mindray
Model Number	A5
Power Source	Electric
Warranty	1 Year
After-sale Service	Online technical support
Material	Metal, Plastic, Steel
Shelf Life	1years
Quality Certification	ce
Instrument classification	Class II
Safety standard	GB15979-2002
Product Name	Portable Anesthesiaa machine
Pressure accuracy	Max of ±2.5cm H2O or 7% of setting
Weight(without vaporizers and cylinder)	160Kg
Backup battery	Yes
Electronic display range	O2, N2O, Air
Power supply	100~120VAC, 50/60Hz
