US$400,000.00
|
1 Unit
(MOQ)
|
Basic Info.
Type
Tool Milling Machine
Object
Asphalt or Concerete
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Program Control
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Specification
CE/CCC/ISO/GHOST/SGS
Production Capacity
300 Units/Month
Product Description

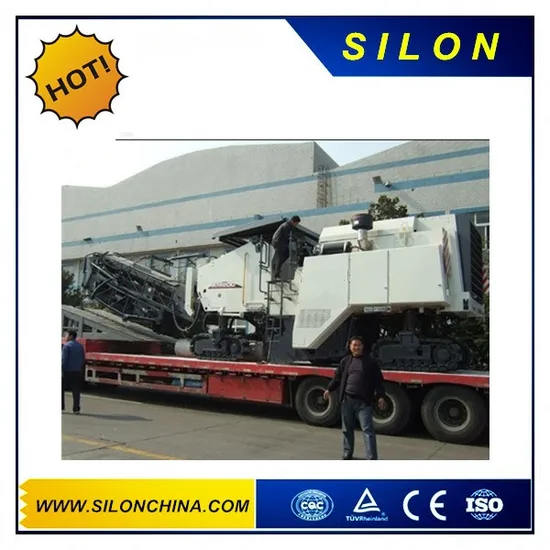

1m Paving Width milling machine SILON Cold Milling Machine XM101
XM Series milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for largescale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, reticulations and vehicle tracks as well as road trench, tunnel excavation. Cement road surface roughening and dislocation smoothness.
The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.
Performance and characteristic
Mechanical driving milling drum has the obvious characteristics of stable milling and high efficiency.
The mechanical hydraulic mixing driving moving system has two-gear speed which can be suitable for the requirement of different working conditions and improve the working efficiency. The highstrength and high wear resistance imported cutter and cutter rest have long service life and low construction cost.
The imported hydraulic elements have high working reliability.
Excellent welting milling performance with right rear leg which can be fast swung into the frame makes the milling drum attached to the road edge stone or wall for milling operation.
Technical Parameters
Model | | XM101 |
| Max. milling with | mm | 1020 |
| Max. milling depth | mm | 120 |
Milling wheel | Number of tools | | 84 |
Drum diameter with tools | mm | 660 |
Engine | Model | | D6114 |
Rated power | kW | 125 |
Rated speed | rpm | 2200 |
Specifications | Operating speed | m/min | 0~13 |
Travel speed | kmh | 0~13 |
Ground clearance | % | ≥20 |
Ground clearance | mm | ≤120 |
Operating weight | kg | 14500 |
Volume | Fuel tank | L | 210 |
Hydraulic oil tank | L | 160 |
Water tank | L | 360 |
Conveyor | Width | mm | 400 |
Measurement | Overall machinery LxWxH | mm | 4583×2294×3130 |
Conveyor LxWxH | mm | 6428×700×610 |
Travel mode | | Tire |
>>
