| US$6,000.00-10,000.00 | 1 Piece (MOQ) |
| Standard Accessories | Optional accessories |
| Drill chuck | 3 axis DRO(SINO) |
| Mill chuck | Universal dividing head(F11160A) |
| Spindle arbors | Rotary working table(TSL200) |
| Working light | 58 clamping sets |
| Coolant system | Collet chuck set |
| Chip tray | |
| Some tools | |
| Table Swivel +/- 45° | |
| All 3 Axes With Automatic & Rapid Feeds | |
| Vertical Feed Gear Swivels +/- 45° | |
| Adjustable Ground Dove Tails Guide Ways on The Axis, Wide Square Guide Ways on Y & Z Axis |

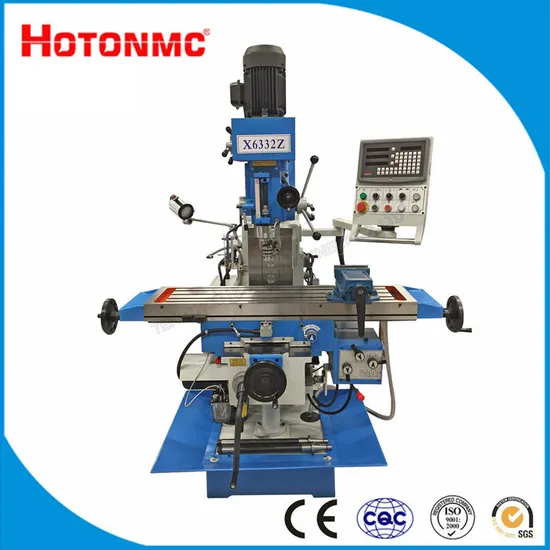

| SPECIFICATION//CODE NO. | UNIT | X6332Z |
| TABLE SIZE | MM | 1370× 320 |
| SPINDLE SPEED RANGE | R/MIN | 90-2000(V), 60-1350(H) |
| TABLE TRAVEL | MM | 800/300/400 |
| SPINDLE TAPER | MM | ISO40 |
| DISTANCE FROM SPINDLE NOSE TO TABLE SURFACE | MM | 0-400(H) |
| DISTANCE FROM SPINDLE AXIS TO COLUMN SURFACE | MM | 200-600(V) |
| SPINDLE TRAVEL | MM | 127(V) |
| MAIN MOTOR | KW | 3.7(V)2.2(H) |
| PACKING DIMENSION(L×W×H) | MM | 1720× 1520× 2225 |
| GROSS/NET WEIGHT | KG | 1650/1500 |
