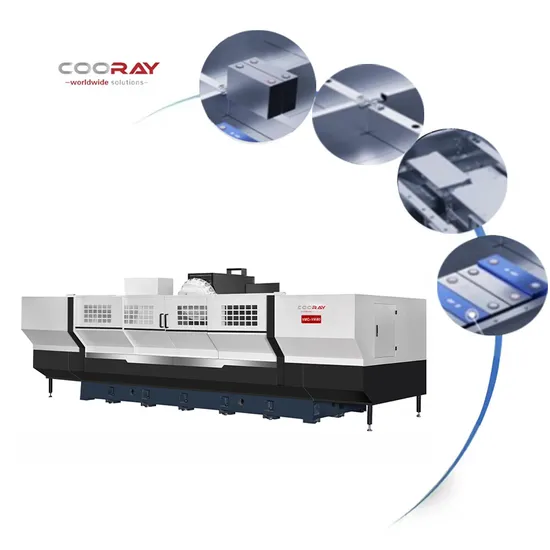

Cooray Cr-Vmc CNC Profile Machining Center Vertical Machining Center

US$50,000.00-90,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CNC PROFILE MACHINING CENTER
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Condition
New
Core Components
Bearing, Motor
Brand Name
Cooray
Product Name
Vmc-V6500
CNC or Not
CNC
Transport Package
The Two Sides Negotiate Logistics.
Specification
9600*2900*2650
Trademark
COORAY
Origin
China
HS Code
84609090
Production Capacity
5000

Packaging & Delivery

Package Size
960.00cm * 290.00cm * 265.00cm
Package Gross Weight
13500.000kg

Product Description

Product Description
Machine data/model Unit VMC-V1600 VMC-V2000 VMC-V2500 VMC-V3500 VMC-V4500
VMC-V6500

Travel		 X-axis travel mm 1600 2000 2500 3500 4000 6500
Y-axis travel mm 600 680 580 580 580 580
Z-axis travel mm 600 600 600 600 600 600
Distance fromspindle nose totablesurface mm 120-720 120-720 120-720 120-720 120-720 120-720

Distance from spindle center to columnguide surface		 mm 660 700 660 660 660 660

Workbench		 Workbench size mm 1700×600 2100×600 3100×500 4000×500 5000×550 7000×550
Workbench load-bearing kg 650 650 650 650 650 800
T-slot(numberof slots-size xspacing) mm 5-18×114 5-18×114 4-18×106 4-18×106 5-18×100 5-18×100

Spindle		 Spindletaper specifications - BT40 BT40 BT40 BT40 BT40 BT40
Spindlespeed(Optional) rpm 12000 12000 12000 12000 12000 12000
Spindlemotor power kw 7.5/11 7.5/11 7.5/11 7.5/11 7.5/11 7.5/11

Three-axis parameters		 Three-axis motor power(XY/Z) kw 3.0/3.0/3.0 3.0/3.0/3.0 3.0/3.0/3.0 3.0/3.0/3.0 3.0/3.0/3.0 3.0/3.0/3.0
XY/Zaxis rapidmoving speed m/min 36/36/36 36/36/36 32/32/32 24/32/32 24/32/32 24/32/32
Cutting feedspeed mm/min 0-15000 0-15000 0-15000 0-15000 0-15000 0-15000

Position		 Positionaccuracy mm ±0.005/300 ±0.005/300 ±0.005/300 ±0.005/300 ±0.005/300 ±0.005/300
Repeatedpositionaccuracy mm ±0.003/300 ±0.003/300 ±0.003/300 ±0.003/300 ±0.003/300 ±0.003/300

Magazine		 Magazine capacity Put 24 24 24 24 24 24
The maximum weightof cutter kg 7 7 7 7 7 7
Themaximum length of cutter mm 300 300 300 300 300 300
Cutter diameter(fullinterspace) mm 80/150 80/150 80/150 80/150 80/150 80/150
Magazineform - Disctype Disctype Disc type Disctype Disc type Disc type

Other		 Air pressure demand Kg/cm² ≥6 ≥6 ≥6 ≥6 ≥6 ≥6
Machine weight Kg 8000 8500 9500 11000 12000 13500
Machine size (length×width×height) m 4.6×2.7×2.76 5.2×2.7×2.76 5.6×2.7×2.65 6.7×2.9×2.65 6.7×2.9×2.65 9.6×2.9×2.65
