Product Description
Product Description

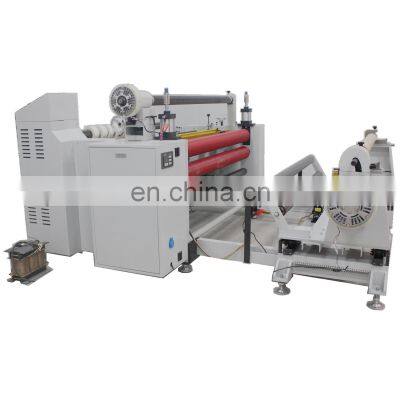

PVC reflective tape machine with Rewinding slitting function machine Functional characteristics:This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding andreceiving materials. Imported magnetic powder clutch is adopted to control the tension. Imported gas sensive device is adopted todetect the rectification of rolling, with fully automatic hydraulic rectification control. Automatic detection, rectification andmetering can be realized. It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc.There are two selection ofr main engine, single electric motor, double electric motors.Purpose:It is applicable for the slitting tooling of industrial adhesive tape, cellphone tape, protective film, copper foil, aluminumfoil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, electronics,leather, clothes making, plastic, etc. Main Technical Parameter: data as below is for reference only , you can customize to other data if required Model 1300 slitting machine 1600 slitting machine Max Feeding Width ( mm ) 1300 1600 Main Engineer Power ( KW ) 6 6 Speed (T/M ) 120 120 Size ( mm ) 2400*2000*1300 2400*2300*1300 Weight (kg) 1200 1500 Rewinding diameter ( mm ) 800 800 Winding diameter ( mm ) 450 450 precision ( mm ) ±0.10 ±0.10 Power 380V 50HZ 380V 50HZDIFFERENT ANGLE OF MACHINEBELOW to show you our standard machine different angle viewCharatertistics and Functions1.This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding andreceiving materials.2. Imported magnetic powder clutch is adopted to control the tension.3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectificationcontrol.4. Automatic detection, rectification and metering can be realized.5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintainPurpose for Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery :1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil,aluminum foil, OPP, PE, PVC, sheet, cloth, etc.2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.Features for Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery1. The max width: 650mm / 1300mm / 1600mm2. The minimum slitting width: 8-25mm3. Material thickness range: 0.05-3mm4. Tolerence: 0.2mm, Precision: 0.1mm5. The speed: 80m/min6. Under CE and ISO7. Manufacturer experience: 12 years8. Export experience:10yearsUnwinding part description 3 inch air-shaft for unwinding - can optional of 6 inch unwinding shaft too Magnetic powder brake 100N also can be 150 or 200 that as required EPC include the controller , driver and sensor laminating and pulling material part the up part unwinding is optional to use or not when just one material slitting , then it not use and when two material unwinding, it is function of cold laminatingSlitting part and waste trimming partthe blade size upwards is standard of 1300mm machine size , other larger diameter also optional and down part can be Nylon roller optional when need slitting EVA sponge mterials slitting blade 8 sets is standard , you can buy more when required and minimum slitting width 10mm is optionalRewinding part2pcs 3 inch inflatable rewinding airshaft , magnetic powder clutch 50 N control the rewinding tension double main motor 2 pneumatic arms to hold the rewinding shaft the rewinding air-shaft diameter 1 inch and 2 inch are optionaland slip shaft optionaloperation board the slitting speed and the tension can be set on this control panel , with meter counter
>>
