Wz30-25 Backhoe Loader Small Backhoes for Construction Work Professional Design Backhoe Loader

Product Description

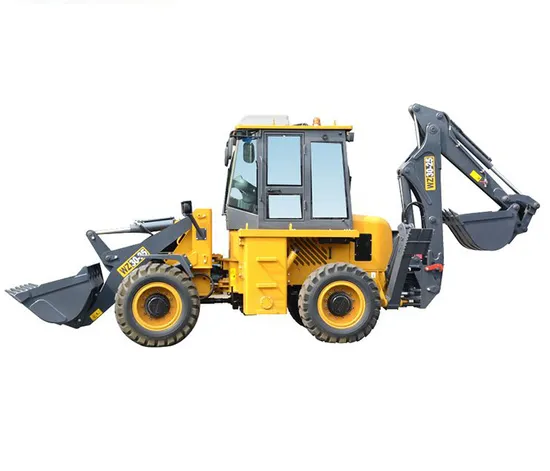

WZ30-25 2.5ton Chinese new rc backhoe wheel loader excavator
The WZ30-25 is a new multi-function engineering machine which gathering the loading and excavating in the integral whole machine. It is the new generation model of the development based on the same kind product technique in domestic and international. Having adopted four wheel drive, hydraulic torque conberter, hydraulic streering system, hydrulic.
It is extensively used in the roadmaintenance, farml and developments, getting clay for making brckiln, piping builds, the cable builds, park virescence and the excavating of the road opens to dig, broking up etc.

1. The Yucai engine
Low noise, low exhaust gas, low west, green environmental protection, driving motive, good reliability. The spirit valve control take type brake system and parking brake system move two unite as one, when there is trouble in the gas brake system, it can make intime brake automatically,so it is more safety.
2. Humanization designs
The hand handle layout reasonable, manipulating is portable;steer device, gauge dish and the chair all can be adjusted in up-down and front-back directions according to your sense, so it is comfortable. The back wheel bridge can swing up and down round the cancer, it make wheels has well cling, so the machine has good span and cross capability.
3. Optimized load work device
Reasonable joint layout,dependable position limit function. Lavelling bucket automati-cally in unload position, lacenning labor intensity,and the work range is larger, workfore is more study and steady, the work efficiency is higher.

Optional parts:
4 in 1 bucket/ hammers/ Snow plough/ Augers
Product Paramenters

Description		Unit	Parameter value
Bucket capacity(heaped)		m³	1
Digger capacity		m³	0.3
Dumping clearance		mm	2650
Dumping reach		mm	930
Max.steering angle		°	±35
Max.steering angle of dig working device		°	±85
Traceing speed I / II / III / IV		km/h	0-6.2 / 0-12 / 0-20 / 0-30
Back I / II speed		km/h	0-8 / 0-28.5
Diesel Model			YC4A110-T310/YC41390-T20
Modality			4-stroke water-cooled inline type/4-stroke water-cooled inline type
Rated power		kW	73.5 (Turbocharged)/65
Rated speed		r/min	2200
Wheel base		mm	2600
Tread		mm	1700
Tires			16/70-24
Max.digging depth		mm	4400
Max.digging radium		mm	5471
Overall dimensions(L×W×H)		mm	8000×2310×3424
Operating weight		kg	9500

---
