API 6D/ANSI 150 2PC Flanged Ball Valves Carbon Steel&Stainless Steel Ball Valve Floating&Trunnion Ball Valve Pneumatic/Electric Ball Valve with ISO5211 Pad

Product Description

FEATURES&BENEFITS
1.Fire safe : API 607
2.Anti static : API 608
3.Face to face: ASME B 16.10
4.Flange ends : ASME B 16.5
5.Inspection and test : API 598 / API 6D
Products Description :

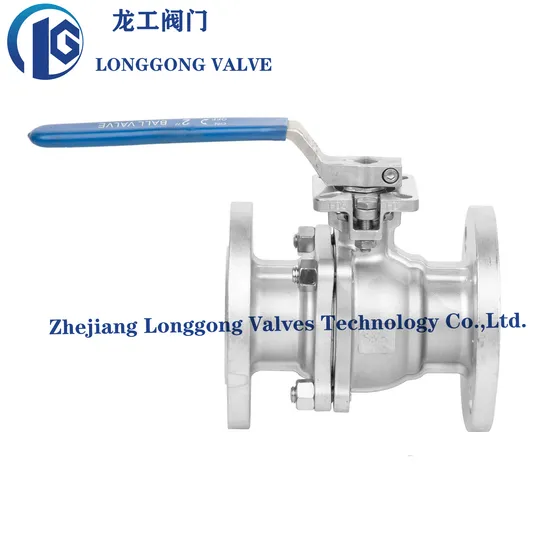

1.Products name: 2pc Full Bore Flanged Ball Valve
2.Size: 1/2"-12"
3.Pressure Rating:CLASS150/CLASS300/CLASS600
4.Flanged end&Blow-out proof stem&Fire safe construction&Anti static device
5.Ball Type: Floating Ball
6.Port Type: Full Bore
7.ISO 5211 Mouting pad
8.Material: WCB, WC6, WC9, LCB, CF8, CF3, CF8M, CF3M, CN7M, Monel and Hast. etc.
9.Ball and Stem: SS304, SS316,SS304L,SS316L,SS410,SS416.etc.
10.Valve Seat: PTFE / RPTFE / PCTFE / VITON / PEEK / DEVLON . etc.
11.Operation: Manual, Above 10" with gear operation.

ITEM	PARTS	MATERIAL
1	BODY	ASTM A351-CF8M	ASTM A216-WCB
2	CAP
3	BALL	ASTM A351-CF8M
4	SEAT	RTFE
5	SEAL	PTFE
6	THRUST WASHER
7	PACKING
8	STEM	ASTM A276-316
9	GLAND	ASTM A351-CF8
10	LOCKING PAD	ASTM A276-316
11	GLAND BOLT	AISI 304
12	HANDLE	ASTM A36 (A536)
13	BOLT	AISI 304

DN	L		H	H1	H2	H3	W	S	D1	Torque (N-m)	Weight (kg)
	CLASS 150	CLASS 300									CLASS 150	CLASS 300
15	108	140	73	50	24.3	17.3	130	11	42	4	1.7	2.5
20	117	153	76	50	25.5	17.3	130	11	42	4	2	3.5
25	127	165	86	63.5	30.8	23.1	160	14	50	10	3	4.7
32	140	-	91	63.5	31	20.5	160	14	50	20	3.8	-
40	165	190	119	81	41.5	28.4	205	17	70	20	6	9.3
50	178	216	127	81	41	28.4	205	17	70	40	8.5	11.7
65	190	241	136	88	42.5	28.4	325	17	70	55	13.7	13.6
80	203	282	164	112	56	39.3	325	22	102	80	18.2	26.3
100	229	305	178	112	56	38.1	325	22	102	120	28	39.3

FAQ
1 Are you a factory or trading company?
We are a factory specialized in manufacturing valves and ftting over 10 years.We have our own stainless steel foundry in Fujian province.
And we have got ISO9001&TS certificate of Manufacturing and processing of valves and fttings.
2 Where are the main markets for your products?
We hope to make business with companies from all over the world. And for now, our valves and fttings have
Been exported to especially in North America, South America, South Asia, Europe and Middle East.
3 Do you have a minimum quantity of the products?
No, we will build business with you with even 1PC. We believe this cooperation will be a long- term relationship for our high quality, competitive price and good after-sale service.
4 Are samples available to be sent with free?
It depends on what product you need. There are hundreds of products we sell. You can contact us for particular answer.
5 Can you print our Logo on the valves?
Yes, we can totally produce products according to your special request, even manufacture it base on your drawing.
6 What is your lead time?
It's around 15 days normally. If we have the products in stock, it will be about one week.
7 what is your payment term?
T/T 30% down payment, balance to be paid before shipment.
8 How can I check your factory situation w hile it's difficult for me to come to China?
We have photos and videos on our website and facebook, It shows every step of the manufacturing.
9 How can you guarantee the quality of products?
Firstly, we have the numerical control device to manufacture products accurately. Then our quality inspectors will test products one by one to make sure every valve or ftting we sell is qualified and release the test mill certificate. If possible, We can also send you the sample for checking. Regarding the details, we can discuss if you want to know more about it.
