GPS Navigation High Precision Agriculture Autosteering Navigation Autopilot System

Product Description

Product Description

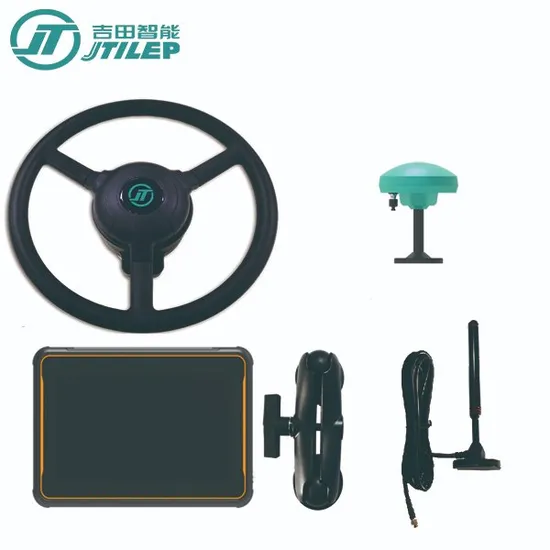

Jtilep Intelligent 408 Beidou navigation agricultural machinery automatic driving system adopts the terminal core integration solution, and its main components include intelligent navigation terminal, motor steering wheel (hydraulic valve), body attitude sensor, GNSS antenna and gyroscope. Support single/dual antenna scheme at the same time. The satellite leveling system and operation detection system can be simultaneously expanded.
Product Parameters

Physical properties		Parameter details
Size		178mmx178mm x 74mm
Weight		1.05kg(Base station host)
Key	Power Key* 1; Up and Down Key* 2; OK Key* 1; Return Key* 1
Display screen		2.5-inch LCD
Indicator light		Power lamp* 1;Radio lamp*1
Shell material		Industrial-grade modulated PC
Electrical properties		Parameter details
Operating voltage		DC4-20V
power dissipation		3W
Standard charger		Valid endurance>24h
Environmental properties			Parameter details
Operating temperature			-40ºC~+70ºC
Storage temperature			-40ºC~+85ºC
Protection Grade			IP67
Impact and vibration			Resistance to 1m free fall

Detailed Photos
Satellite Antenna
Function: receive satellite signal Composition: antenna body, transition rod, antenna base Installation method: glue + drill tail screw / nail-free glue reinforcement Pre-installation scheme: relevant components realize factory pre-installation

Installation position of the single-antenna solution
Installation location selection The installation of satellite antennas needs to follow two basic principles: 1. The center point of the antenna must coincide with the longitudinal centerline of the vehicle; 2. The main body of the antenna needs to be kept perpendicular to the top reference plane of the vehicle, that is, when the vehicle is stationary and the ground is level, the antenna is vertically upward. In the actual installation process, it is preferable to pre-select the plane area suitable for installing the antenna on the top of the vehicle cab and clean it well, and then use the symmetrical reference object on the top of the cab to mark the longitudinal centerline of the vehicle in the plane area before installation. Prepare.
Installation position of the dual-antenna solution
Installation location selection The dual-antenna solution follows the same basic principles as the single-antenna solution. The difference is that two GNSS antennas are arranged longitudinally on the center line of the vehicle. The positioning antenna is connected to the display terminal GNSS-1 interface in front, and the heading antenna is connected to the display terminal GNSS-1 interface in the rear. 2 interface, the straight-line distance between the installation positions of the two antennas should be kept at least 1m

Installation location for vehicles without a cab
Installation location selection Satellite dish installations for non-cab vehicles follow the same basic guidelines. The installation position can be selected to be installed on the front and rear beams or the roll cage according to the actual situation of the vehicle
radio antenna
Function: Receive radio signal Composition: radio antenna, base + feeder Installation method: glue + drill tail screw / nail-free glue reinforcement

Radio Antenna Fixing Method
Installation location selection The installation position of the radio antenna needs to follow two basic principles: 1. The main body of the antenna needs to be kept perpendicular to the top reference plane of the vehicle, that is, when the vehicle is stationary and the ground is level, the antenna is vertically upward; 2. The straight-line distance between the radio antenna and any satellite antenna installation position is at least >30cm. a fixed way Take the same fixing method as the satellite dish
motor steering wheel
Function: executive control unit Composition: motor, steering wheel, steering wheel cover, flange, Motor Bracket Assembly Installation method: overall replacement of the original car steering wheel Pre-installation scheme: relevant components have been pre-installed at the factory

display terminal
Function: core unit, interactive unit Composition: display terminal, RAM bracket Internal integration: 10-inch high-definition touch screen, driving controller, high precision Positioning board, 4G module, radio station Installation method: installed inside the cab through the bracket Pre-installation scheme: relevant components have been pre-installed at the factory
Harness connection
Harness composition In addition to antenna-related feeders, the wiring harness also includes power supply + gyroscope one-to-two wiring harness, motor wiring harness and body attitude sensor wiring harness.
Packaging & Shipping

Certifications
customer photos

Company Profile
Jitian lntelligent focuses on the intelligent agriculture, and is committed to the research & developthe agricultural drones, the automatic driving systems of agricultural machinery, and the intelligentagricultural systems. Xuzhou Jitian lntelligent Equipment Co., Ltd., headquartered in Xuzhou, JiangsuProvince, has more than 400 employees, including more than 190 R&D talents, accounting for about47% of the total number of employees.At the same time, it has in-depth and extensive scientific research and technical cooperation with Harbin Institute of
Technology.Jitian products cover more than 30 countries around the world, radiate 28,000+ overseas enterprises.manage 10W+ sets of agricultural machinery equipment, and have a total detection area of 450 millionmu (74 milion acres).Agricultural machinery intelligent detection terminals have a market share ofmore than 70% in China.After years of efforts, Jitian lntelligent has continuously expanded its servicearea and qradually has the ability to provide agricultural information services covering the whole China.

---
