| US$0.26-3.65 | 500 Pieces (MOQ) |
| Product Name | Pipe clamp |
| Band Material | 1.Steel,zinc plated 2:Stainless steel(SS304,SS316) 3.Steel with spray treatment |
| Rubber | With(EPDM or PVC) or without |
| Band | Flat or reinforced |
| Nut | M8;M10 or M8+10 |
| Package | Bulk in carton then palletized |
| Certification | ISO/SGS |
| Delivery time | 30-35days per 20ft container |

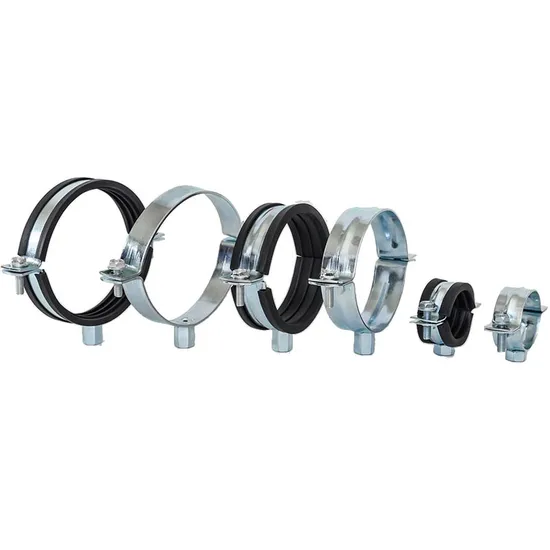

| Power robust clamp include robust clamp solid nut,double ring,single type and double type.They are all have a larger strong torque.Widely used in places with strong fastening force. | |
| Pipe size(mm) | Range(mm) | Band size(WxT)(mm) | Nut size |
| 15 | 12-18 | 20x2.0 | M8;M10;M8+10 |
| 18 | 15-19 | 20x2.0 | M8;M10;M8+10 |
| 22 | 20-25 | 20x2.0 | M8;M10;M8+10 |
| 28 | 26-30 | 20x2.0 | M8;M10;M8+10 |
| 35 | 32-36 | 20x2.0 | M8;M10;M8+10 |
| 40 | 38-43 | 20x2.0 | M8;M10;M8+10 |
| 48 | 47-51 | 20x2.0 | M8;M10;M8+10 |
| 60 | 60-64 | 20x2.0 | M8;M10;M8+10 |
| 75 | 75-80 | 20x2.0 | M8;M10;M8+10 |
| 90 | 87-92 | 20x2.0 | M8;M10;M8+10 |
| 100 | 99-105 | 20x2.0 | M8;M10;M8+10 |
| 110 | 107-112 | 20x2.0 | M8;M10;M8+10 |
| 115 | 113-118 | 20x2.5 | M8;M10;M8+10 |
| 125 | 125-130 | 20x2.5 | M8;M10;M8+10 |
| 133 | 132-137 | 20x2.5 | M8;M10;M8+10 |
| 140 | 138-142 | 20x2.5 | M8;M10;M8+10 |
| 150 | 148-152 | 20x2.5 | M8;M10;M8+10 |
| 160 | 159-166 | 20x2.5 | M8;M10;M8+10 |
| 200 | 200-212 | 20x2.5 | M8;M10;M8+10 |
| 220 | 215-220 | 20x2.5 | M8;M10;M8+10 |
