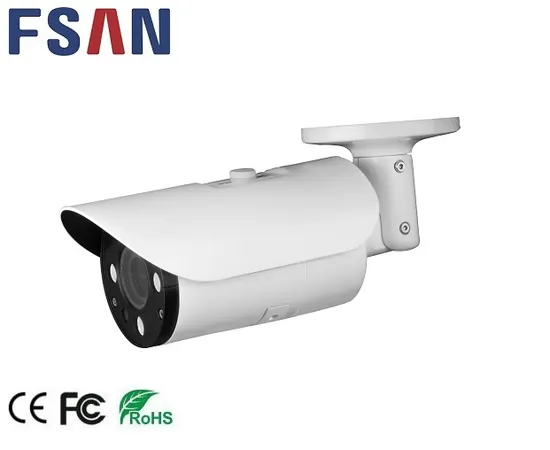

Fsan Professional Outdoor 4MP Waterproof Smart IR Infrared Night Vision CCTV Home Security Surveillance HD Bullet P2p Network Onvif Poe IP Bullet Camera

Product Description

FSAN Outdoor 4MP Waterproof Smart IR Infrared Night Vision CCTV Home Security Surveillance HD Bullet P2P Poe IP Camera FEATURES-Max resolution 4Mega(2560*1440@ 25fps)
-Support low bit rate, low delay and ROI enhance encoding
-H. 265 high effective compression, save bandwidth and storage space
-Support multi-line OSD, OSD color can be adjusted
-High efficient infrared leds, long service life, IR distance can reach 20-30m
-Support smart IR, prevent IR overexposure at night
-ICR infrared filter plate automatic switch, achieve real D/N monitoring
-Support corridor mode, increase the monitoring area in longitudinal strip environment
-Support PoE (optional)
-Support 3D digital N/R,TWDR
-Support Micro SD card (128G) local storage
-Support bidirectional talk
-Support 2CH alarm input / 1CH alarm output
-Support auto electronic shutter function,adapt different monitoring environment
-Support GB28181, Onvif access
-Support Email, NTP
-Support HTTPS encryption transmission
-Original equipment boot to modify password, ensure password security
SPECIFICATION

Model	W3131IHZ79F
CAMERA	Image sensor	1/2.8" 4MP progressive scan CMOS
	Min.illumination	0Lux/F1.4(IR on)color: 0.1Lux/F1.4, B/W:0.5Lux/F1.4
	IR distance	40-50M(3xIR array Leds)
	Electronic shutter	Auto/ Manual(1/25~1/10000), FLK
	Day/ Night	ICR switch, auto/color/B/W/ext
	Lens	2.8-12mm DC ICR lens
	Lens interface	Φ14
	S/N ratio	≥35db (AGC OFF)
	Output	PAL/ NTSC adjustable
	WDR	TWDR(Off/ Low/ Middle/ High)
	Light board control	Auto/ Manual/ Off
	3D N/R	Off/ Low/ Middle/ High/ Higher
	Defog	Off/ Low/ Middle/ High
	Mirror	Off/ Horizontal/ Vertical/ 180º rotation/ Corridor mode(90º rotation,270º rotation)
	Slow Shutter	Off/ On
AUDIO/VIDEO ENCODING	Video compression	H.265/H.264
	H.265 Encoding	Main Profile
	H.264 Encoding	BaseLine / Main Profile / High Profile
	Encoding features	NTSC: main stream: 2560*1440 @25fps/sub-stream: D1@25fps PAL: main stream: 2560*1440 @25fps/sub-stream: VGA@25fps
	Max. Resolution	4M(2560X1440)
	Video bit rate	Constant bit rate, variable bit rate (16kbps~8000kbps)
	Video type	Complex stream/ Video stream
	Audio compression	G.711u
	Audio bit rate	64Kbps
	Audio control	Support input/ output volume gain control
	ROI	Support 4 zones, multi-stage level
NETWORK	Network protocol	TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPoE,UPnP,SMTP
	Access protocol	ONVIF,GB28181 (optional)
	Browser	Support IE, Chrome, Firefox, Safari
	Video preview meanwhile	4
	User permission	User add/modify/delete, permission management
	Safe mode	Authorized user name and password, HTTPS encryption and AES link encryption, RTSP verification
	Motion detection	Set detection zone, Multi-level sensitivity can be set
	Tampering alarm	1 zone
	Privacy Mask	4 zones
	Intelligent analysis	Target Counting, Area Detection, Left/ Lost, Line Crossing
	Event linkage	Email sending, alarm output linkage, preset linkage
	Multicast function	Support
	ANR	Support
	Mobile surveillance	Support Apple, Android
	Device exception detection	Support network disconnected, IP conflict, illegal access alarm
	OSD	Title, time and date overlay, multi-line OSD, OSD color optional
	DST	Support
	Snapshot	Support snapshot, snapshot resolution is encoding resolution
	System update	Support remote update
INTERFACE	Network Interface	RJ45 10M/100M network adaptive
	Analog video output	1CH 1.0Vp-p Composite video output
	Audio	Line input/output
	Alarm input	2CH input
	Alarm output	1CH output
	Reset	Support
	RS485	Support
	TF card	Support Max 128G,Micro SD(SDHC /SDXC) card local-storage

DIMENSION
INTERFACE
1.Audio input
2.Power supply interface
3.Network interface
4.RS485/Alarm output
5.Analog video output
6.Alarm input
7.Audio output Detailed Images
Exhibition Show
Certifications
Shipping
FAQ
Q: 1. Support sample order?
Yes, we support sample order for customer to test before bulk order place.
Q: 2. What is the lead time?
For sample order need 3-5days, for bulk order time can be negotiate.
Q: 3. Do you have any MOQ limit?
Sample order is no limit, but for bulk order once you need customized logo print or customized package then it will have MOQ limit.
Q: 4. How do you ship the goods and how long does it take arrive?
For sample order, usually we shipped by DHL, FedEx, UPS or TNT.
For bulk order, usually we shipped by customer appointed forwarder by air, by sea or by train.
Q: 5. What is the warranty for the products?
Our warranty is for 2 years.
Q: 6. How is your after-selling service?
We support online technical support.
Any problem with our product can contact us to solve problems at any time.
Q: 7. Do you supply OEM service?
Yes, we are professional OEM/ODM manufacturer.
We support customized logo print on products, customized package, customized GUI_language.

---
