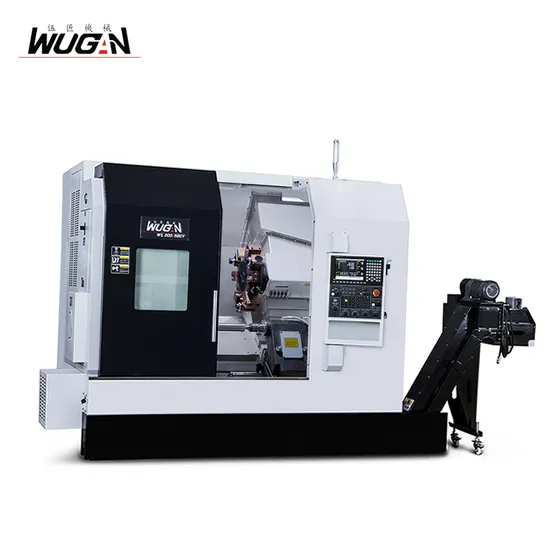

Durable High Strength Metal Lathe Machine for Precision Engineering

Product Description

·30° inclined monolithic bed ensures high rigidity
·Class C3 ball screws, ensure maximum positioning accuracy and durability.
· V-belt drive spindle system to reduce min. rpm and increase torque at full horsepower output.
·Optimal lineup of structures to meet customer needs, including extended beds, turret punch presses and servo axes.
·Compact design with built-in motor to minimize the length of the machine (standard bed style).
·Ergonomic design for easy operation and maintenance.
Product Parameters

basic specification		Unit	WL 200/580Y
Maximum Swing Diameter		mm	φ650
Maximum swivelling diameter of the bed saddle		mm	φ630
Maximum cutting diameter		mm	φ350
Maximum cutting lengt h		mm	500
spindle
Spindle motor power (continuous/30 min)		kw	11/15
Maximum spindle speed		rpm	4200
Spindle nose			A2-6
Spindle through-hole diameter		mm	φ78
Bar capacity		mm	φ65
Collet size		inch	8"
feed axis
Maximum stroke X/Z		mm	250/510
X/Z axis motor power		kw	3. 1 [3/1.8 FANUC]
Fast shift speed X/Z		m/mi n	30/30
X/Z slide type			linear
C-axis (optional )
Minimum spindle positioning accuracy			±0.001°
Dynamic accuracy			±0.001°
turret
Turret Capacity			12
Quadratic cutter		mm	25
Round cutter		mm	φ40
Power Turret Motor Power		kw	3.7/5.5
Power Turret Tool Specifications			BMT55-ER32
Power tool speed		rpm	4000
tailstock
Mandrel Diameter		mm	φ70
Mandrel Stroke		mm	150
Tailstock body stroke		mm	460
Taper hole tape r			MT#5
Programmable Control Mandrel/Tailstock Body			yes/no
Tailstock body movement method			saddle-driven
Mechanical specification s
Positioning accuracy (X/Z)		mm	±0.004
Repeat Positioning Accuracy(X/Z)		mm	±0.003
CNC system			syntec or fanuc
chip conveyor			sidebar
Exterior(L×W×H))		mm	2950x1800x2480
Machine weight		kg	5000

Detailed Photos
The WL200/580Y series bed is designed with a low centre of gravity 30° slanting bed, Meehanna cast iron, ultra-strong structure, and heat flow balance design, which ensures excellent vibration damping of the bed structure, and thus guarantees outstanding performance of the machine. The high rigidity of this series of lathes ensures long term high precision cutting, and also extends the life of the machining tools.
The WL 200/580 and WL 260/1050 series can be equipped with an optional Y-axis function, which greatly increases the machining capability of complex workpieces and improves the machining accuracy of many engineering parts. For example, it can perform high-precision slot milling and X-axis eccentric drilling. The Y-axis function is achieved by linking the creation axis with the X-axis, featuring a low centre of gravity and good rigidity.
The WL 200/580 series combines C-axis control and a powered turret to become a mill-turn centre. The WL 200/580 series combines C-axis control and a powered turret to become a mill-turn centre, which can turn, mill, drill and tap a workpiece on the same lathe. This avoids errors caused by moving the workpiece between machines and saves machining time and manpower. The power turret uses the latest servo positioning technology for fast tool change and good rigidity. The power tool is driven by an advanced AC servo motor, which can easily complete the most difficult machining with high torque output and abundant power.
WL 200/580 Series with optional Y-axis function The WL 200/580 Series can dramatically increase the machining capability of complex workpieces and improve the machining accuracy of many machined parts. For example, high-precision slot milling and X- axis eccentric drilling. The abundant Y-axis travel (100 mm=+ 50 mm/-50 mm) enables efficient machining of various parts. The low centre of gravity of the large-span rail design improves rigidity. The angle between the OY-axis and X-axis is 30°, so that the centre of gravity of the turret always falls within the range of the saddle slide to ensure the rigidity of machining, and also to reduce the deformation due to the burden of its own weight.
Suzhou Wugan Intelligent Equipment Co., Ltd. Specialises in the production of high-performance CNC lathes and high-performance CNC turning centres, which are designed on the basis of the latest international lathe technology. Based on the latest international lathe cutting-edge technology as the basis of design, combined with high rigidity, high precision, high productivity and exquisite appearance and other characteristics, to provide customers with efficient and reliable cutting performance. In order to meet the higher requirements of customers, the company also has a high-performance mill-turn combined model available for use, which can be turned, milled and drilled in the same machine, and other combined processing functions, which not only increases the output capacity of the product, but also makes this series of lathes can easily meet the various processing needs of different customers.

---
