Larger LCD Display Online UPS with Sinewave UPS 1K/10K/15K/20KVA

Product Description

Larger LCD Display Online UPS with Sinewave UPS 1K/10K/15K/20KVA
Applications:
Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom.
Key Features:
1. Large blue back light LCD for detailed Real-time UPS status display.
2. Advanced online pure sine wave power supply system, with bypass repair switch, It can provide a reliable, high quality AC power source to the precision equipments, can be used widely in different fields.
3. Widely used to computer equipments, telecommunication systems and Industrial automatic control equipments.
4. Truly online design, different from offline, it can adjust the input voltage, filtering, when the AC break off, the UPS will provide an uninterruptible power source from the backup batteries.
5. UPS will change to bypass mode when overloading or inverter fault, when overloading remove, UPS will turn to inverter mode automatically.
6. N+N Parallel Redundancy and Capacity expansion for 6-20K(up to three units)
Technical Specifications of Telecom UPS HP9116C 1-10K (1pH in/1pH out)

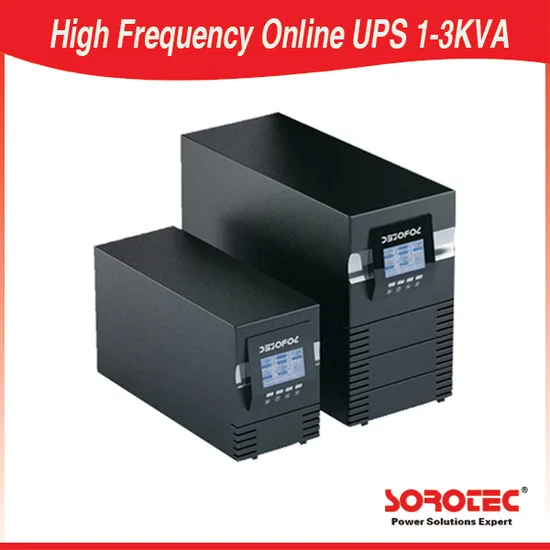

Model		HP9116C 1-3KVA
		1KT	1KT-XL	2KT	2KT-XL	3KT	3KT-XL
Rated Power		1KVA/0.7KW		2KVA/1.4KW		3KVA/2.1KW
Rated Voltage		220/230/240VAC
Rated Frequency		50/60 Hz
Rated Frequency
Voltage Range		115~295VAC (±3VAC)
Frequency Range		50HZ: (46~54HZ); 60HZ:(56HZ~64HZ)
Power Factor		> 0.98
Output
Voltage Regulation		220/230/240X (1±2%)VAC
Frequency Regulation		50/60 Hz±0.05Hz
Power Factor		0.7/0.8 (Optional)Standard 0.7
Voltage Distortion		Linear load<3% Non-linear load<6%
Overload Capability		110%~150% for 30 sec;≥150% for 200ms
Current Crest Ratio		3∶1
Transfer Time		0ms (AC mode→Battery mode)
Battery
DC Voltage		36VDC		96VDC		96VDC
Recharge Time		5 hours to 90% of capacity after full load discharge
Recharge Current		1A	4A/8A (Optional)	1A	4A/8A (Optional)	1A	4A/8A (Optional)
Display
LCD		Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate.
Communication
Interface		Smart RS232, SNMP(Optional),USB (Optional)
Environment
Operation Temperature		0~40ºC
Humidity		0~95% (Non-condensing)
Storage Temperature		-25ºC~55ºC
Sea Level Elevation		<1500m
Noise Level (1m)		<45dB		<50dB		<50dB
Physics Characteristic
Weight (KG)	N.W	14	7	31	13.5	31.5	14
	G.W	16	9	33	16	33.5	16.5
Dimensions: Wx D x H )mm		145X400X220		192X460X340

Model	HP9116C 6-10KVA
	6KT	6KT-XL	10KT	10KT-XL
Rated Power	6KVA/4.2KW		10KVA/7KW
Rated Voltage	220/230/240VAC
Rated Frequency	50/60 Hz
Input
Voltage Range	176~279VAC (±3VAC)
Frequency Range	50HZ: (46~54HZ); 60HZ:(56HZ~64HZ)
Power Factor	0.98
Output
Voltage Regulation	208/220/230/240X (1±2%)VAC
Frequency Regulation	50/60 Hz±0.05Hz
Power Factor	0.7/0.8 (Optional)Standard 0.7
Voltage Distortion	Linear load<3% Non-linear load<6%
Overload Capability	105%~130% for 10 min;≥130% for 1 min
Current Crest Ratio	3:1
Transfer Time	0ms (AC mode→Battery mode)
Battery
DC Voltage	240VDC
Recharge Time	7 hours to 90% of capacity after full load discharge
Recharge Current	2A	4.2A	2A	4.2A
Display
LCD	Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate.
Communication
Interface	Smart RS232, SNMP(Optional),USB (Optional)
Environment
Operation Temperature	0~40ºC
Humidity	0~95% (Non-condensing)
Storage Temperature	-25ºC~55ºC
Sea Level Elevation	<1500m
Noise Level (1m)	<55dB
Physics Characteristic
Weight (KG)	79.0	33.5	81.5	36.0
	87.5	39.5	90.0	42.0
Dimensions: Wx D x H )mm	260X570X717

Technical Specifications of Telecom UPS HP9116C 10-20K (3pH in/1pH out)

odel		HP9316C 10-20KVA
		10KT-XL	15KT-XL	20KT-XL
Rated Power		10KVA/7KW	15KVA/10.5KW	20KVA/14KW
Rated Voltage		380VAC 3phase with ground
Rated Frequency		50/60HZ
Input
Voltage Range		304 ~ 478VAC ( 3VAC )
Frequency Range		50HZ:(46~54HZ);60HZ:(56~64HZ)
Power Factor		0.98
Output
Voltage Regulation		208/220/230/240X (1±2%)VAC
Frequency Regulation		50/60HZ±0.05 Hz
Power Factor		0.7/0.8 (optional) standard 0.7
Voltage Distortion		Linear load<3% Non-Linear load<6%
Overload Capability		105% ~ 130% for 10min; ≥ 30% for 1min
Current Crest Ratio		3:01
Transfer Time		3MS (AC Mode ~Battry mode)
Battery
DC Voltage		240VDC
Recharge Current		4.2A
Display
LCD		Display input/output Voltage, Frequency, Battery voltag, Battery capacity, Loading rate.
Communication
Interface		Smart RS232,SNMP card (optional) U ,SB (optional)
Environment
Operation Temperature		0~40ºC
Humidity		0~95% (Non-condensing)
Storage Temperature		-25ºC 55ºC
Sea Level Elevation		<1500m
Noise Level(1m)		<55dB
Physics Characteristic
Weight (KG)	N.W	47.0	51.2	51.2
	G.W	53.0	58.5	58.5
Dimensions :( Wx D x H )mm		260X570X717

---
