Basic Info.
Application
Double Beam Crane, Gantry Crane, Bridge Crane, Single Grinder Crane, Small Crane
Maximum Lifting Height
>20m
Color
Yellow or Customized
Product Name

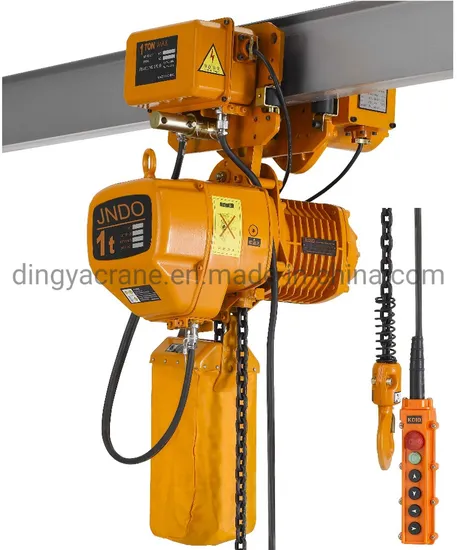

Electric Chain Hoist
Environment Temperature
-20~40 ºC
Control Method
Pendant +Remote(Customized)
Lifting Height
Standard 3m or Customized
Transport Package
Wooden Case/Bubble Wrap or Others
Production Capacity
2000 Pieces/Year
Product Description
| TECHNICAL PARAMETERS |
| Type | Capacity
(Ton) | Lifting Height
(m) | Lifting Speed
(m/min) | Lifting Motor | Operating Motor |
Power
(KW) | Rotation Speed
(m/min) | Phases | Voltage
(V) | Frequency
(HZ) | Power
(KW) | Rotation Speed
(m/min) | Operating Speed(m/min) | Phases | Voltage
(V) | Frequency
(HZ) |
| DYHB0.5-01 | 0.5 | 3/9 | 7.2 | 1.1 | 1440 | 3 | 380 | 50 | 0.4 | 1440 | 11/21 | 3 | 380 | 50 |
| DYHB01-01 | 1 | 3/9 | 6.8 | 1.5 | 1440 | 3 | 380 | 50 | 0.4 | 1440 | 11/21 | 3 | 380 | 50 |
| DYHB01-02 | 1 | 3/9 | 3.6 | 1.1 | 1440 | 3 | 380 | 50 | 0.4 | 1440 | 11/21 | 3 | 380 | 50 |
| DYHB1.5-01 | 1.5 | 3/9 | 8.8 | 3.0 | 1440 | 3 | 380 | 50 | 0.4 | 1440 | 11/21 | 3 | 380 | 50 |
| DYHB02-01 | 2 | 3/9 | 6.6 | 3.0 | 1440 | 3 | 380 | 50 | 0.4 | 1440 | 11/21 | 3 | 380 | 50 |
| DYHB02-02 | 2 | 3/9 | 3.4 | 1.5 | 1440 | 3 | 380 | 50 | 0.4 | 1440 | 11/21 | 3 | 380 | 50 |
| DYHB2.5-01 | 2.5 | 3/9 | 5.6 | 3.0 | 1440 | 3 | 380 | 50 | 0.75 | 1440 | 11/21 | 3 | 380 | 50 |
| DYHB03-01 | 3 | 3/9 | 5.6 | 3.0 | 1440 | 3 | 380 | 50 | 0.75 | 1440 | 11/21 | 3 | 380 | 50 |
| DYHB03-02 | 3 | 3/9 | 4.4 | 3.0 | 1440 | 3 | 380 | 50 | 0.75 | 1440 | 11/21 | 3 | 380 | 50 |
| DYHB03-03 | 3 | 3/9 | 2.2 | 1.5 | 1440 | 3 | 380 | 50 | 0.75 | 1440 | 11/21 | 3 | 380 | 50 |
| DYHB05-02 | 5 | 3/9 | 1.8 | 3.0 | 1440 | 3 | 380 | 50 | 0.75 | 1440 | 11/21 | 3 | 380 | 50 |
FAQ
Q,What products does your company mainly deal with? A,Electric chain hoist,electric wire rope hoist,bridge crane,gantry crane ,wireless remote control,hook etc. Q,What information do I need to provide when making an inquiry? A,Product information: Quantity, Specification (capacity, lifting height, voltage, size, material, color and packing requirements) . Q,What is your payment method? A: 30% deposit, with the balance before delivery, we accept T/T, Western Union and L/C at sight.
>>
