Horizontal Centrifugal Casting Machine for Car Accessories

Product Description

We are a leader in the foundry machinery industry with over 20 years of design and manufacturing experience. We can provide global customers with high-quality custom design, R&D, and manufacturing of foundry equipment, and have a perfect after-sales system.

J517 type cantilever centrifugal casting machine is horizontal cantilever structure. The equipment consists of main machine, hydraulic ejector mechanism, electrical control system, mold water cooling device, safety shield and other parts. It can be widely used for the production of large diameter sleeve and cylinder castings.
Performance characteristics
The main machine consists of base, turntable, speed control motor, bearing housing, spindle, transmission mechanism, ejector, etc.
The main machine is the core part of the cantilever centrifugal casting machine, which completes the rotating action of the turntable and realizes the centrifugal pouring of castings. The mold is mounted on the turntable and the spindle speed can be steplessly adjusted to meet the technological requirements of different diameter castings.
The hydraulic ejector mechanism includes hydraulic station, ejector cylinder and ejector rod. The ejector cylinder pushes the ejector rod in the middle of the spindle to eject the casting.
The cooling water system includes spindle bearing water cooling, mold and casting cooling, etc. The cooling water of mold and casting is recovered from the cooling water tank to improve the working environment of the main machine.
The rotation of the mold turntable is powered by AC frequency-controlled motor. The AC variable frequency speed control is stable and has a wide range of speed regulation, which can adapt to the production process requirements of different castings.
The electrical control system consists of PLC, touch screen, frequency controller, control cabinet, low-voltage electrical components, buttons, indicators, etc.

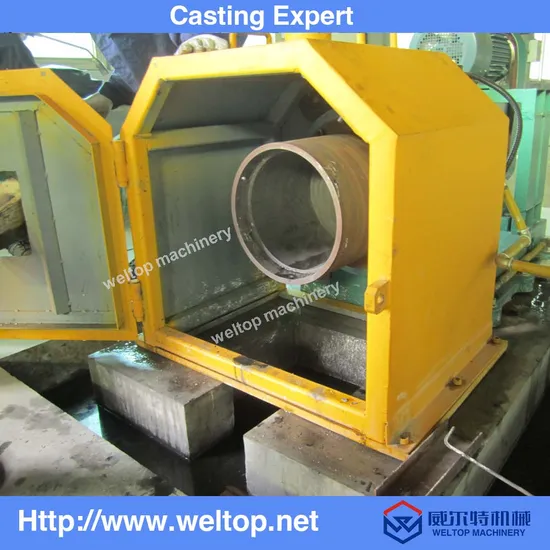

Equipped with safety shield to ensure the safety of operators.
Technical parameters

NO.	Name	Value	Unit
1	Maximum diameter of casting	Ф800	mm
2	Minimum diameter of casting	Ф500	mm
3	Maximum length	600	mm
4	Max. load (casting + mold)	1000	Kg
5	Main engine speed control motor power	22	Kw
6	Spindle speed	0~1000	r.p.m
7	Hydraulic pump motor power	4	Kw
8	Ejecting force	100	KN
9	Ejecting stroke	300	mm

FAQ
Q: Why choose our products
A: We are professional manufacturers and exporters with our factory, and with in-house professionals and technicians to handle development, design, production, sales and service. We provide the most competitive price in the world.

Q: How can I get the best machine for our business?
A: Just let us know your casting's material, Max. and mini. outside diameters, thickness, and length, we will suggest the most suitable machine and professional solution.


Q: What services do you provide
A: We provide a full range of centrifugal casting machines, including fully automatic centrifugal casting machines. Our strong technical strength means that we can add functionality to meet your needs.


Q: When can we arrange shipment?
Because our equipment is customized non-standard products, the delivery time varies according to the equipment, generally 50-70 days after getting the deposit.

Q: What is our advantage
A: We have more than twenty years of experience in this industry. During this, we have experience with a range of different working conditions and technological processes. This allows us to provide equipment that conforms perfectly to technological processes.
We can also work with you to ensure that your design meets all of your requirements.


Q: Can you make machinery to our specific requirements
A: Our senior engineers will work with you to ensure that all machinery meets your specific requirements. We will also offer suggestions that can improve production and save costs. We can design machinery to meet any purpose.

Q: What happens after purchase
A: We provide an experienced and professional commissioning engineer to your factory to oversee and direct machinery installation and commissioning. The senior engineer will remain on hand until the machinery produces the casting you want.

---
