Basic Info.
Application
Granules, Liquid with Suspended Solids, Powder, Granules, Liquid with Suspended Solids, Powder, Powder
Application Area
Chemical, Engineering & Construction, Food, Pharmaceutical, Chemical, Engineering & Construction, Food, Pharmaceutical, Food
Certification
CE, ISO, CE, ISO, CE, ISO
Control System
Touch Screen Control, Touch Screen Control
Cooling Method
Water Cooling, Water Cooling
Heating Method
Hot Water Heating, Hot Water Heating
Main Material
Stainless Steel, Stainless Steel
Mixing Capacity
500-1000L, 500-1000L
Safety Features
Safety Lock, Safety Lock
Speed Control
Variable Speed, Variable Speed
Speed Range
50-59 R/min, 50-59 R/Min
Stirring Type
Spiral, Spiral
Temperature Control
Without Heating, Without Heating
Working
High Speed Mixer, High Speed Mixer
After-Sales Service
Engineers Available to Service Machinery Overseas, Free Spare Parts, Online Support, Video Technical Support, 24-Hour Response, Video Guide, Paid on-Site Servic
Operating Type
Cycle Operating
Mixing Drum Shape
Ribbon Mixer
Capacity
30-2400 Liter/Batch
Transport Package
Container Loading/Wooden Case
Specification
Customizable
Production Capacity
30sets/Month
Product Description

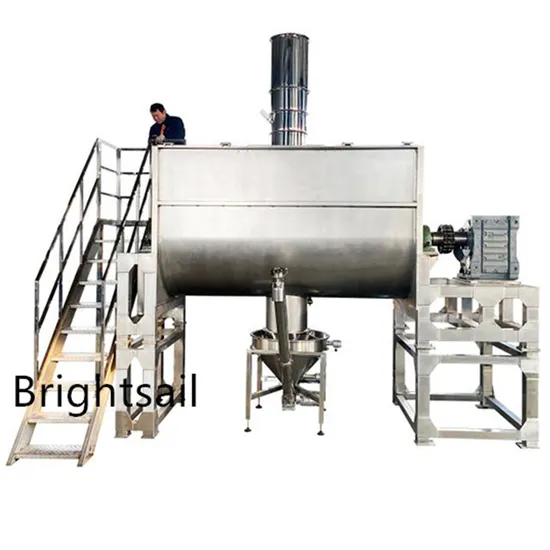

Product Description BSR series stainless steel horizontal powder ribbon blender mixer machine
Stainless steel horizontal powder ribbon blender ribbon mixer machine comprises of U-shape barrel,transmisstion parts and ribbon agitating blades which usually have doubleor triple layers with outside screw gathering material from side to center and inside screw transmitting the material from center to sides to form convection mix.
It has a very good effect for mixing dry powder with liquid.
Main features
1) Simple structure in horizontal U shape ,easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts ,motor,electric parts ,bearings and operation parts.
3) hermetic seals are adopted on both sides of our ribbon mixer,
4) There is safeyty net on the cover, so that operator cannot reach out arms into the mixer, danger can be prevented.
5) Pneumatic valve is adopted to discharge material
Product Parameters
| Model | Max work volume(L) | Rotate speed (rpm) | Overall size (L*W*H) (mm) | Weight(kg) |
| BSR-300 | 180 | 66 | 1550(L)*812(W)*1015(H) | 780 |
| BSR -500 | 300 | 66 | 1975(L)*1059(W)*1120(H) | 955 |
| BSR-1000 | 600 | 41 | 2340(L)*1380(W)*1455(H) | 1400 |
| BSR-2000 | 1200 | 33 | 2480(L)*1651(W)*1805(H) | 2500 |
| BSR-3000 | 1800 | 33 | 2945(L)*1896(W)*1980(H) | 3300 |
| BSR-4000 | 2400 | 29 | 3038(L)*1946(W)*2205(H) | 3600 |
| BSR-5000 | 3000 | 29 | 3932(L)*2010(W)*2035(H) | 4620 |
| BSR-6000 | 3600 | 26 | 3938(L)*1882(W)*2246(H) | 5300 |
| BSR-8000 | 4800 | 26 | 3986(L)*2160(W)*2516(H) | 6800 |
| BSR-10000 | 6000 | 19 | 4500(L)*2270(W)*2667(H) | 8900 |
Product Pictures:
Detailed Photos Safety net: help to prevent accidents Spiral Ribbons: drive material to move to get mixed
Discharge valve: pneumatic valve Platfrom(Optional): for easy feeding and cleaning Company Profile Our company-Brightsaill Machinery Co., Ltd is focus on the research of powder equipment, such as spice grinding machine, herb grinder machine, chemical powder mixer machine, pharmacy powder making machine... etc. Our products can be applied in food, medicine, chemical and other industries and had won a good reputation.
After 15 year's development and accumulation, our company has been one of the most influential equipment manufacturers in the industry. And we wish to grow up and develop together with all new and old customers.
After Sales Service Pre-Sales Service * Inquiry and consulting support with 24 hours
* Sample testing support.
* View our Factory.
After-Sales Service * Instructing how to install the machine, insutructing how to use the machine.
* Engineers available to service machinery overseas.
Packaging & Shipping
*Usually small machine will be packed in the wooden case, and we can also pack it according to customers special request.*If machine is big, we will fix the machine inside container with steel wires and nails.Machine won't move inside the container.
>>
