| US$30,000.00-54,500.00 | 1 Piece (MOQ) |

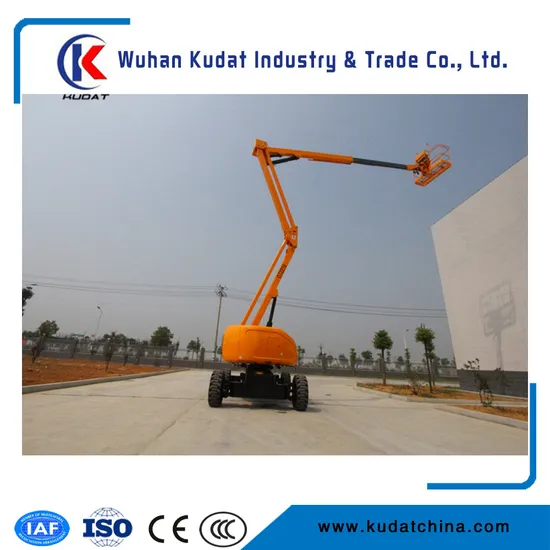

| MODEL GTZZ 18 | |||
| MEASUREMENTS Metric US Metric US | |||
| Working height maximum * | 19.7m | 64ft8in | |
| Platform height maximum | 18 m | 59ft | |
| Horizontal reach maximum ** | 10.8m | 35ft5in | |
| A | Platform length-8ft model | 0.76m | 2ft6in |
| B | Platform width-8ft model | 1.83m | 6ft |
| C | Height-stowed | 2.38m | 7ft10in |
| D | Length-stowed | 8.15m | 26ft9in |
| E | Width | 2.48m | 8ft2in |
| F | Wheelbase | 2.60m | 8ft6in |
| G | Ground clearance-center | 0.43m | 1ft |
| PRODUCTIVITY | |||
| ()Lift capacity (restricted) | 230kg | 507lb | |
| Platform rotation | 180° | ||
| Turntable Swing | 360°continuous 355°non-continuou | ||
| Turntable tailswing | 0 | ||
| Drive speed -stowed | 6.3km/h | ||
| Gradeability -stowed (2WD) | 30% 45% | ||
| Gradeability -stowed (4WD) | 45% | ||
| Turning radius - inside | 3 m | 9ft10in | |
| Turning radius -outside Turning radius - axle extendeded outside | 5.2m | 17ft1in | |
| Controls | 12V DC Proportional 12V DC Proportional | ||
| POWER | |||
| Power source | B3.3-C60(45kw) 400 61hp (45.5kw) | ||
| Auxiliary power unit | 12V DC 12V DC | ||
| Hydraulic tank capacity | 175L | ||
| Fuel tank capacity | 100L | ||
| WEIGHT *** | |||
| 22WD | 8202kg | 18082lbs | |
| STANDARDS COMPLIANCE EN280\JG/T5101\Q/ADZV001-2008 | |||
