Conventional Wood Drying Kiln Dry African Wood/Nanyang Fir/Cedar/Burka/etc

Product Description

Made-to-measure to meet your requirements
No matter how much timber you need to dry at one go, say from 10m3 till 200m3, XINAN will always have the most suitable kiln for you.
Why wood drying (woodworking) need our XINAN drying product:
No matter the wood is used as a construction material, or as a structural support or in woodworking objects, it will absorb or desorb moisture until it is in equilibrum with its surrounding. But wood drying unequally or too rapidly, shrinkage in the wood will cause damage to it. XN series of drying system will improve the wood drying quality efficiently, satisfying your requirement all the time. Product Description

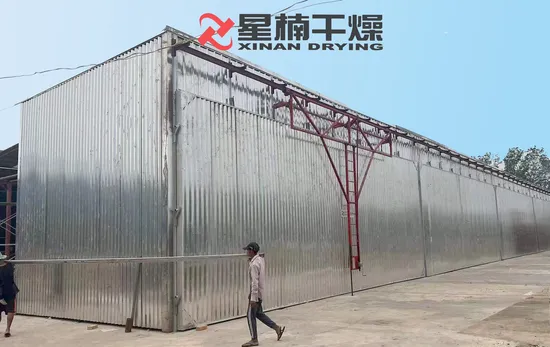

1. XINAN Conventional Drying Kiln
XINAN Conventional Wood Drying Kiln uses fully automatic, semi-automatic, or manual control systems. The kiln body is made of all Al or civil engineering shell, the kiln door is of the opposite or hanging type. It is highly sealed and open, lightweight and flexible, especially for cold regions in Russia . Top thickness reaches 250 mm, and the wall thickness is 150 mm, ensuring normal operation at an ambient temperature of -30ºC to -50 ºC.
No matter how much wood you want to dry at once, from 10 m3, 20 m3 to 200 m3, XINAN can customize it for you and provide you with the most suitable drying kiln.
Main technology coefficient of drying kiln

Model	Capacity(m3)	Dimension of Kiln(m)	Power(KW)
XN20	20	4.3×4.8×4.8	6
XN30	30	4.3×5.6×4.8	6
XN40	40	4.3×6.6×5.6	9
XN50	50	6.4×6.0×5.6	9
XN60	60	6.4×6.6×5.6	9
XN80	80	9.0×6.6×5.6	15
XN100	100	9.0×8.6×5.6	15
XN120	120	10.5×8.6×5.6	18
XN150	150	13.5×8.6×5.6	21
XN200	200	15.8×8.6×5.6	27

https://xinan1009.en.made-in-china.com/product-list-1.html

2.XNK Series Heat Pump Heating Drying Kiln
XNK Series Heat Pump Heating Drying Kiln is a wood drying equipment that uses new high-temperature heat pump technology to replace traditional boiler heating methods. This equipment does not require the use of boilers for heating, has zero emissions and no pollution, and has lower operating costs compared to pure electric heating drying and boiler heating drying. It is also easy to automate and control, saving labor costs.
Characteristics of air drying equipment:
1. It can achieve fully automatic operation without needing to be on duty
2. The kiln body can be made of all aluminum alloy or Shijian shell
3. Adopting a new type of high-temperature heat pump for heating, without environmental accountability issues
4. Equipped with auxiliary electric heating, suitable for use in low-temperature environments
5.Compared to pure electric heating, it saves about 70% energy and reduces processing costs
Detailed Photos
Installation Instructions
Our Advantages
Pre-sale service
1) Provide the free consultation of equipment
2) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
3)Welcome to visit our factory
Service during the sales
1) Inspect the machine before leaving the factory
2) Overseas: Send technical personnel to guide the installation and debugging of equipment
3) Train the first-line operator
After sales service
1) 24 hours online service
2) Provide technical exchanging

Certifications
More information,
please ask our website:https://xinan1009.en.made-in-china.com/product-list-1.html

---
