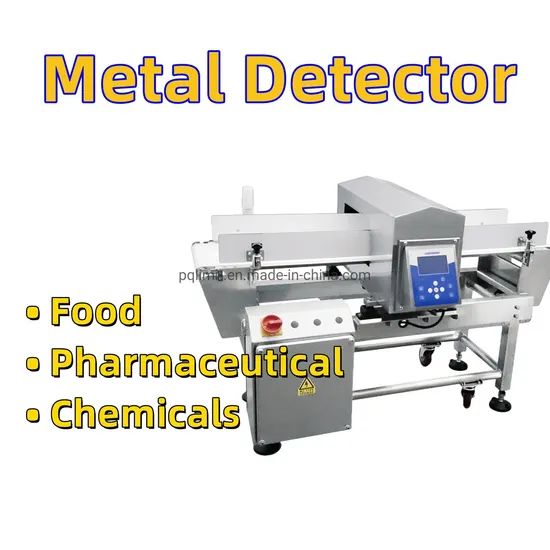

3015 Conveyor Metal Detector for Packed Food/Sugar/Cookies/Drinks/Tea/Pharmaceutical

Product Description

MT series metal detectors are specially designed for high demand of sensitivity, stability and intelligent detection. Using ARM+FPGA architecture design, with advanced technologies such as patented adaptive algorithms, it achieves industry-leading detection performance.
TECHNICAL FEATURES
1. Intelligent learning function, automatic parameter setting, easy to operate.
2. X-R orthogonal decomposition and multiple filtering algorithms, better anti-interference performance.
3. Phase intelligent tracking and automatic balance adaptive technology, better stability.
4. Anti-interference photoelectric isolation driver, remote installation of operation panel.
5. DDS all-digital and digital signal processing technology improves detection accuracy.
6. American FRAM ferroelectric memory, lossless storage of 50 product parameters.
7. Can detect various metal materials such as iron, stainless steel, copper, aluminum and lead.
TECHNICAL SPECIFICATIONS

NO.	Item	Note
1	Frame Material	SS304
2	Channel Size (W*H)	300*150mm
3	Product Size (W*H)	250*110mm
4	Sensitivity without product	Fe≥0.8, NF≥1.2, SUS304≥1.5
5	Auto Setting	Intelligent self-learning(one key auto setting after only time of product study)
6	Conveyor Belt Width	220mm
7	Conveyor Belt Length	1500mm
8	Conveyor Belt Height	720~850mm
9	Moving Direction	From left to right when facing control panel
10	Typical Belt Speed	28m/min
11	Product Weight	Max 10kg
12	Alarm Mode	Sound-light alarm
13	Reject Mode	air blow/pusher/sliding bar/flip/belt drop
14	Power	AC220V 1 phase 200W
15	Working Environment	Free of high-power frequency converter, obvious vibration and dynamic metal objects

Note: The actual detection sensitivity will be affected by the product type, speed, temperature and working environment.
DIMENSIONAL DRAWING
Moving from Left to Right when facing the panel
Moving from Right to Left when facing the panel
APPLICATION
Cookies
Sugar
Black Tea

---
