Machinery for Cup Fan Printing Flexo Press Machine Paper Roll to Roll

Product Description

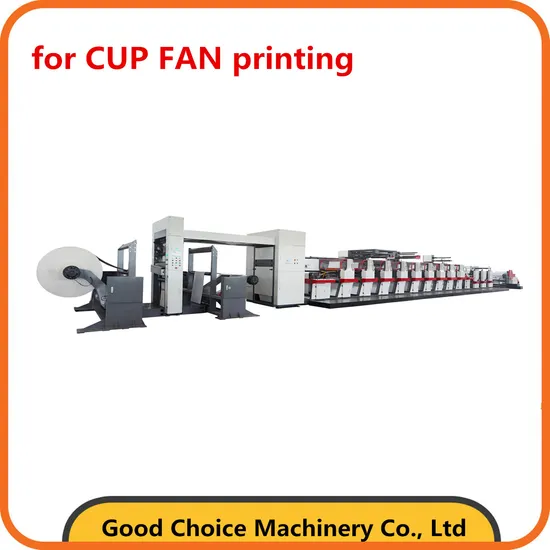

DHF3 Flexo Printing Machine for CUP FAN printing Detailed Photos Substrate Coated paper, cardboard, copy paper, BOPP, PET, plastic film, etc., widely used in paper cup, paper box, food package gob, packaging paper and the like printing fields.
Our Advantages AUTO SPLICING SYSTEM
TWINS MERCURY UV LAMPS
100% quality control system
ink pump for chamber doctor blade system
Unwind unit (Non-stop)
Web guide system
Web cleaner and corona system
Turn bar
In-feed tension control unit (Servo control)
8 printing units (servo system control)
Auto register
Image Inspecting System
Rear out-feed tension control system (Servo control)
Rewind unit(Non-stop)
Plate-mounting machine
Anilox roller washing machine
Features 1 . Fast, safe and convenient sleeve-changing technology, contributing to low cost and high productivity.
2 . Sleeve cylinder thickness can be arbitrarily selected within a certain range, and sleeves with different outer diameters and the same inner diameter are mounted to acquire the desired printing circumferences.
3 . Servo motor driving sleeve type printing cylinder can realize stepless continuously selectable printing length.
4 . Automatic registration for printing stations
5 . One set ceramic anilox rollers (LPI is decided by customer but confirmed by Donghang)
6 . One set of medium size printing SLEEVES (the printing repeat length is decided by DongHang but confirmed by customer).
7 . Open type ink tray with ink pump
Technical Parameter:

No	Descriptions of Functions	DHF301000mm
1	Maximum unwinding diameter	1524mm
2	Maximum rewinding diameter	1524mm
3	Printing repeat length	350-810mm
4	Maximum substrate width	1020mm
5	Maximum printing width	1000mm
6	Power requirement	380V 3PH 50Hz
7	Machine rating speed	0-200 m/min
8	Printing plate thickness	1.14mm (To be determined)
9	Printing plate attaching tape thickness	0.38mm (To be determined)
10	Automatic stop when paper broke	YES
11	Automatic alert when paper less	YES
12	Meter counting and quantity counting	YES
13	Speed adjustment in many stages	YES
14	Ink	Water base ink/ Solvent ink
15	Drying	Hot air& IR
16	Substrate and thickness	Paper:80-350gsm
17	Control langue	Chinese/English

Packaging & Shipping Overseas shipping packing
Company Profile Warmly welcome to visit our factory!
FAQ 1) what is speed of this machine?
Normal working speed is 150-180m/min.
2) Delivery time
4 month after down payment received!

---
