Vmc850 Three Linear Guide Milling Machine Center

Product Description

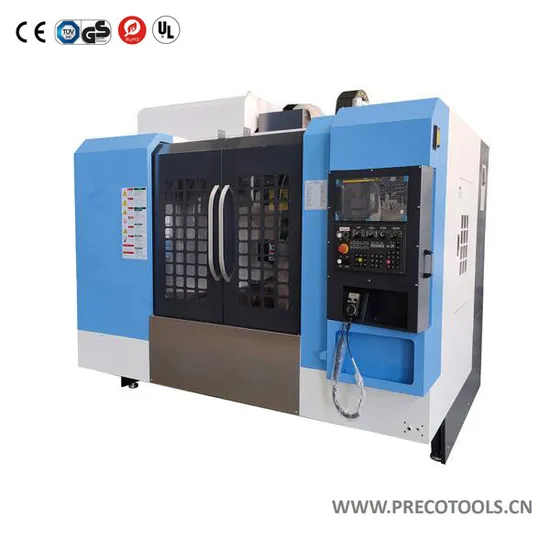

Three Linear Guide Milling Machine Center VMC850

The feed axis of the machining center is controlled by X, Y and Z coordinates, and the spindle is driven by servo motor. It can realize the one-time clamping of various disc, plate, shell, cam, mold and other complex parts, and complete the processing of various processes such as drilling, milling, boring, expanding, reaming and tapping. It is for the production of multi variety, medium and small batch products, and can show its advantages for the processing of complex and high-precision parts. suitable for automotive, mold, aerospace, hardware and other mechanical processing needs.
Features
• Machine torque, quick response characteristics, suitable for automotive, mold, aerospace, hardware and other mechanical processing needs.
• Parts after a clamping can be completed milling, boring, drilling, tapping and other processing, with high precision.
Specification:

Model	VMC850
Travel
X-Axis	800mm
Y-Axis	500mm
Z-Axis	500mm
Spindle nose to worktable	120-620mm
Spindle center to column guide rail	581mm
Feed
X-Axis fast feeding	24m/min
Y-Axis fast feeding	24m/min
Z-Axis fast feeding	24m/min
Cutting feeding	1-10000mm/min
Work Table
Size	1000×500mm
Max capacity	500kg
T Slot	5×18×900mm
Spindle
Spindle Speed	8000rpm
Spindle Diameter	140mm
Taper of the spindle	BT40
Tensile	MAS-P40T-I
Main motor power	8KN
Spindle Speed	7.5Kw
Tool magazine
Size	24T
Type	Disc Type
Tool position	24
Tool change time	2.5s
Max. Dia. of tools	80/150mm
Max.length of tools	300mm
Max.weight of tools	8Kg
Dimension of the machine
Weight	5000 Kg
Overall dimension (L×W×H)	2600×2400×2650mm

Standard Accessories:
1. Spindle speed 80-8000rpm.
2. Main servo motor 7.5KW.
3. 16 tools ATC made in TAIWAN.
4. Remote MPG (hand wheel.)
5. Z axis rigid tapping.
6. Z axis balancing weight.
7. Auto lubrication.
8. Outside water coolant and air coolant system.
9. Chip by manual.
10. Fully enclosed splash guard.
11. Leveling pads.
12. Working light.
13. Warning lamp .
14. Toolbox.
15. FANUC 0i MF5 CNC SYSTEM.
Optional Accessories:
1. Fourth and fifth axes;
2. Chain cutting machine;

---
