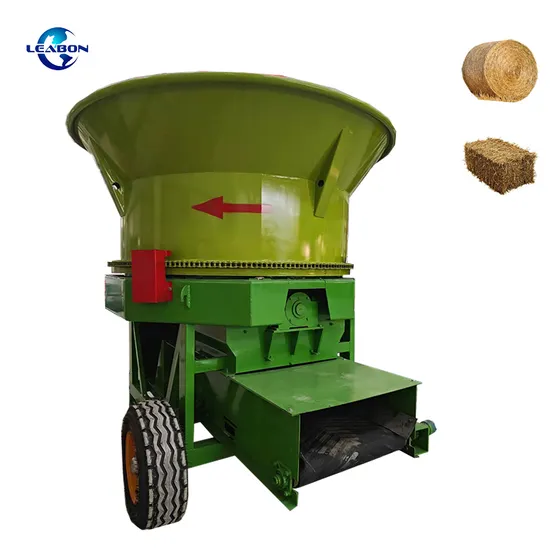

Farm Animal Feed Forage Chaff Cutter Cattle Forage Cornstalk Chopper Grass Grinder Dry Straw Bales Shredder

Product Description

Farm Animal Feed Forage Chaff Cutter Cattle Forage Cornstalk Chopper Grass Grinder Dry Straw Bales Shredder
Product Description

Products Introduction of straw bale shredder It can handle all kinds of bales with different thicknesses, different lengths, and different moisture contents, with a wide range of moisture and adaptability, and convenient disassembly and transportation.Features of bale crusher:1. The turntable can store a large amount of materials and realize intermittent feeding.2. The inner disc of the rotating disc is designed with a damping plate, which can grasp the bale and rotate it, and the cutting efficiency is high.3. High shredding strength.4. Bundles are broken, which saves more human resources.
Working Process of straw bale shredder
Raw Materials & Final Products


Specification of straw bale shredder

Model	9FC-80	9FC-100	9FC-130	9FC-150
Power	22-30kw	45-55kw	75kw	90kg
Capacity	2-3t/h	3-5t/h	5-7t/h	8-10t/h
Crushing effect	3-8cm	3-8cm	3-8cm	3-8cm
Top diameter	1800mm	2200mm	2600mnm	2800mm
Bottom diameter	1500mm	1800mm	2200mm	2400mm
Number of blades	24pcs	24pcs	24 pcs	24 pcs
Discharge method	Spray	Spray type / bottom discharge	Bottom discharge	Bottom discharge
Total Weight	1700kg	2300kg	2800kg	4300kg
Dimensions	3.2*1.8*2m	3.6*2.2*2.3m	4*2.6*2.5m	4.7*2.8*2.8m

Detailed Photos
Show details of straw bale shredder
Different model of straw bale shredder
Customer Feedback

Related Products

Round Baler Square Baler Company Profile

FAQ
Contact us
If you interest in our machine,please click "SEND",to get more details of the Alfalfa Hay and Grass Straw Rotary Shredder Price Moveable Grass Straw Cutter Crusher Wheat Straw Crusher.

---
