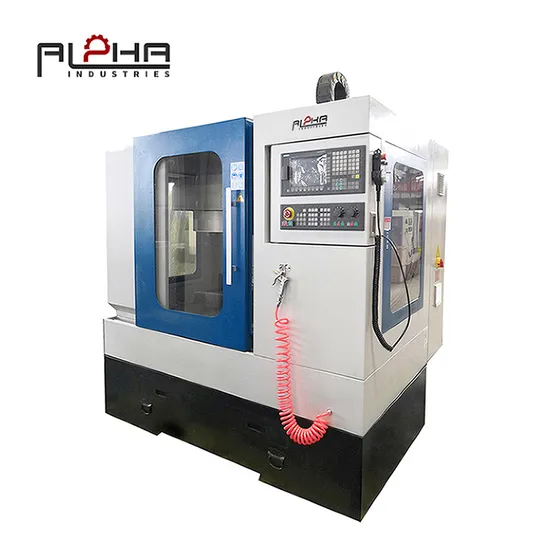

Vmc400 CNC Machine Center Large Scale Processing Equipment New Lathe Machine

Product Description

Product Description
* Premium linear guides and powerful servo drives on all axes(XYZ)
* High precision baal screw screw
* High quality cast-iron machine body
* Enclosed luxury guard
* GSK25I CNC system
* 8T armless tool magzine
* High speed BT30 spindle unit

Model NO.	Vmc400	Structure	Bed type
Milling Cutter Type	Vertical Milling Cutter	Milling Cutter Structure	Indexable Type
Controlling Mode	CNC	Automatic Grade	Automatic
Precision	High Precision	Certification	CE, ISO 9001
Condition	New	Trademark	Alpha industries
Origin	China	Production Capacity	100 Sets/Year

Product Parameters

Model			VMC400	VMC500	VMC600	VMC65 0
Travel	X-axis		400mm	450mm	600mm	650mm
	Y-axis		300mm	320mm	400mm	450mm
	Z-axis		450mm	450mm	450mm	500mm
	Spindle nose to table surface		100-580mm	90-540mm	100-550mm	120-620mm
	Spindle center to column surface		420mm	360mm	400mm	500mm
Worktable	Table size		300x600mm	800x260mm	800x320mm	900x400mm
	Max.loading		150KG	200KG	300KG	400KG
	T-slot width		14	16	16	18
	T-slot quantity		3	3	3	3
Spindle	Spindle taper		BT30 (optional:BT40)	BT40	BT40	BT40
	Spindle speed		6000(optional:8000-12000)	8000rpm	8000rpm	8000rpm
	Spindle motor		2.2(optional:3.75)	3.7KW	5.5KW	5.5KW
Tool	Max.tool dia.		120mm	104/205mm	104/205mm	100/200mm
	Max.tool length		200mm	200mm	200mm	250mm
	Max.tool weight		3KG	7KG	7KG	7KG
Rapid movement	X,Y axis rapid feed		12/12 m/min	20000mm	20000mm	20000mm
	Z	axis rapid feed	10m/min	18000mm	18000mm	18000mm
	Cutting feed		1-10000mm/min	1-10000mm/min	1-10000mm/min	1-10000mm/min
Accuracy	Position accuracy		0.01mm	±0.02mm	±0.02mm	±0.01mm
	Repeat positioning		0.01mm	±0.01/300mm	±0.01/300mm	±0.005/300mm
	accuracy
XYZ axis AC servo motor			torque N.m 4/4/6	torque N.m /6/6/15B	torque N.m/6/6/15B	torque N.m 10/10/15B
Power device	Power form		3-phase AC 380V±10% 50Hz±10%
	Capacity		10KVA	9KVA	11KVA	12KVA
Coolant system	Capacity		260L	250W	250W	450W
	Cooling pump power		0.09W	380V	380V	380V
	Cooling pump flow		25L/min	1m3/h	1m3/h	2m3/h
	Rated head		4M	15M	15M	20M
Air supply	Using air pressure		4-8KG/cm2	0.6MPa	0.6MPa	0.6MPa
Dimension and weight	Dimensions		2000x1900x2800mm	2200x1900x2400mm	2300x1950x2400mm	2500x2200x2400mm
	Net weight		2200KG	2200KG	2400KG	3800KG
Linear guide rail diameter (X/Y/Z)			25mm/25mm/30mm	25mm/25mm/25mm	30mm/30mm/30mm	35mm/35mm/35mm

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
