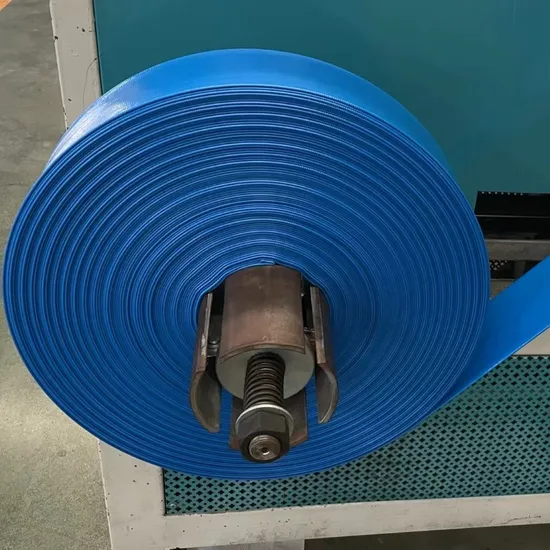

Blue Color 10 Bar PVC Lay Flat Hose

Product Description

Feature:
PVC compounds inner tube and outer cover , high tenacity polyester netting between inner tuber and outer cover. Inner tube and outer cover are extruded simultaneously , excellent bonding between layers. Designed for varous appilications , including light duty , medium duty and heavy duty . working pressure including 2-4bar , 6bar , 8bar-10bar . burst pressure= 3* working pressure REACH / ROHS standard available , environmental material , free of phthalates. 100% virgin raw materials , including pvc resin and plasticizers . excellent flexibility , easy to layout and pack during use . anti-chemical , anti- abrasion , aging resistant , long service life With UV stablizer , UV resistant Temperature resistant : -5ºC to 70ºC Applications:
discharge water under high pressure in agriculture , industry , mining.
Light Duty- Specifications

Inner Diameter		Wall Thickness	Length	Working Pressure	Burst Pressure	Weight
Inch	mm	mm	Mtr/Roll	Bar	Bar	kgs/Mtr
1"	25	1.3	100	4	15	0.15
1-1/4"	32	1.2	100	4	15	0.17
1-1/2"	38	1.2	100	4	15	0.19
2"	51	1	100	4	12	0.22
2-1/2"	64	1.1	100	4	12	0.30
3"	76	1.1	100	4	12	0.36
4"	103	1.25	100	4	12	0.55
5"	127	1.35	100	3.5	10	0.75
6"	153	1.35	100	3	9	0.90
8"	203	2	100	3	9	1.60
10"	255	2.4	50	2.5	7	2.60
12"	305	2.35	50	2	6	3.00
14"	358	3	50	2	6	5.00
16"	408	3	50	2	6	6.00

Medium Duty-Specifications

Inner Diameter		Wall Thickness	Length	Working Pressure	Burst Pressure	Weight
Inch	mm	mm	Mtr/Roll	Bar	Bar	kgs/Mtr
3/4"	20	1.35	100	6	21	0.11
1"	25	1.30	100	6	21	0.16
1-1/4"	32	1.20	100	6	21	0.19
1-1/2"	38	1.20	100	6	21	0.22
1-1/2"	40	1.40	100	6	18	0.225
2"	51	1.35	100	6	18	0.30
2-1/2"	64	1.55	100	6	18	0.43
3"	76	1.50	100	6	18	0.50
4"	103	1.90	100	6	18	0.80
5"	127	2.00	100	6	18	1.08
6"	153	2.40	100	6	18	1.60
8"	203	2.60	100	5	15	2.20

Heavy Duty- Specifications

Inner Diameter		Wall Thickness	Length	Working Pressure	Burst Pressure	Weight
Inch	mm	mm	Mtr/Roll	Bar	Bar	kgs/Mtr
3/4"	20	1.55	100	10	30	0.14
1"	25	1.80	100	10	30	0.20
1-1/4"	32	1.50	100	10	30	0.21
1-1/2"	38	1.70	100	10	30	0.29
1-1/2"	40	1.90	100	10	30	0.30
1-3/4"	45	2.00	100	10	30	0.35
2"	51	1.55	100	8	24	0.35
2"	51	1.80	100	10	30	0.42
2-1/2"	64	1.90	100	10	30	0.70
3"	76	2.00	100	8	24	0.66
3"	76	2.55	100	10	30	0.85
4"	103	2.25	100	8	24	1.00
4"	103	2.70	100	10	30	1.20
6"	153	3.00	100	8	24	2.00
8"	203	3.20	100	6	18	2.80

Qingdao Grantseed Rubber Co., Ltd is a leading manufacturer & exporter of Hydraulic Hoses, Industrial Hoses and PVC Hoses in China. The company covers an area of 22000 square meters workshop with a total investment up to RMB 60 million. We have 110 sets of different equipments for production, testing and employ more than 180 staffs, including 20 technicians. Our annual output is 9 million meters for hydraulic hoses and 6 million meters for industrial hoses and 800 millions meters for PVC Hoses. Technical team: 10 years experienced workers, 16 years experienced engineers Sales Team:15 sales and service employees, 10 years experience in foreign trade Facilities: 14 automatic high speed braiding machines, 3steel wire spiral machines 2 Italy VP equipment for industrial hose 8 production lines for dredging hose 25 production lines for pvc hose Technology: latest rubber tech support by Qingdao University of Science& Technology Quality control: 100% inspection before shipment Market: more than 68 countries, 218 clients all over world Material Imported rubber materials LG NBR rubber from South Korea, Imported rubber materials JSR rubber from Japan, Imported rubber materials natural rubber from Thailand and Malaysia, These rubber with super steady performance is the highest quality rubber in the world. Complying with the ISO 9001: 2008 standard, we also offer the OEM service for well-known brands in the world and reputable China commercial companies. Our rubber hose are widely sold in domestic mining industry, petrochemical industry, coal industry, and the hydraulic machine industry. The 80% of rubber hose are exported to international markets, including Europe, North America, South America, Africa, the Middle-east countries, Southeast Asia etc. We strive to offer the best purchasing experience. Agile response, excellent quality, timely delivery, good prices, and professional after-sales services. We look forward to your cooperation.

---
