St0.15-1.0*1000mm Automatic CNC Flying Ctl Steel Coil Slitting Machine

Product Description

STC0.15-1.0*1000mm Automatic CNC Steel Coil Slitting Machine
Product Description
The working principle of the hot rolling longitudinal shear slitting line is to feed the hot rolled steel coil into the longitudinal shear machine through a conveying system. The longitudinal shear machine uses cutting tools to cut the steel coil into narrow steel strips, and piles up the cut steel strips through a stacking machine. The control system is used to monitor and control the entire production process, ensuring efficient and stable production.
The hot rolling longitudinal cutting and slitting line is mainly used in the production of steel strips in the steel manufacturing industry. It can cut wide hot-rolled steel coils into narrow steel strips to meet the size requirements of different industries. These steel strips can be used to manufacture various products such as automotive parts, household appliances, and building materials.
The hot rolling longitudinal shear slitting line has efficient and accurate cutting ability, which can quickly and accurately cut hot rolled steel coils and improve production efficiency. It also has an automated control system that can achieve automated production, reduce manual operations, and reduce production costs. In addition, the hot rolling longitudinal shear slitting line also has a reliable quality control system to ensure that the quality of the cut steel strip meets the requirements.
In short, the hot rolling longitudinal shear strip line is an important steel strip production equipment widely used in the steel manufacturing industry, providing high-quality steel strip products for various industries.
Production process flow
This equipment is a production line composed of a loading trolley, uncoiling, feeding, disc blade longitudinal shearing machine, damping pre splitting, winding unit, unloading trolley, control system, etc. Its main function is to cut a wider metal coil into multiple strips of the required width along the length direction. Prepare billets for processes such as rolling, punching, cold bending, and stamping. Adjust the distance between the upper and lower tool axes to adapt to different thicknesses of sheets; Replace blade spacers and sleeves of different specifications, and cut them into strips of different widths.
Product Parameters

Type	ST 1000	ST-1100	ST-1250	ST-1600	ST-1600	ST-1800
coil thickness	0.15mm-1.0mm	0.2mm-2.0mm	0.3mm-3.0mm	0.4mm-4.0mm	0.6-6.0mm	1.0-8.0mm
coil width	200-1000mm	300-1100mm	300-1250mm	500-1600mm	500-1600mm	800-1800mm
coil weight	10ton	12ton	15ton	20ton	25ton	30ton
Width accuracy	±0.05mm	±0.05mm	±0.1mm	±0.1mm	±0.1mm	±0.15mm
Machine speed	0-100-150-200m/min	0-100-150-200m/min	0-100-150-200m/min	0-80-120-180m/min	0-80-120-180m/min	0-60-80-120m/min

Type	ST 2000	ST-2000
coil thickness	2.0-12mm	3.0mm-16mm
coil width	1000-2000mm	1000-2000mm
coil weight	35ton	35ton
Width accuracy	±0.05mm	±0.05mm
Machine speed	0-30-60m/min	0-30-50m/min

Detailed Photos

After Sales Service
We provide comprehensive After Sales Support and Service to meet our customer need.- Drawings: Provide the foundation drawing, electric scheme and wiring diagram, hydraulic drawing, pneumatic & electric pipeline drawing and other drawings requested by customer.- Installation and commissioning: Will send our technicians to customer's workshop for supervision of installation and commissionTraining of Customers' technician/workers during commission- Breakdown Support: We offer 1 year warranty service for main crucial components except consumablesInform immediate technical assistance and advice to customer by phone or e-mail.Skilled and experienced engineers are capable of dealing with any type of breakdowns.Technical service work performed in Customer's site if required.Urgently supply mechanical or electronic components.Fast supply of spare parts and wearing parts to cover foreseeable requirements
Certifications

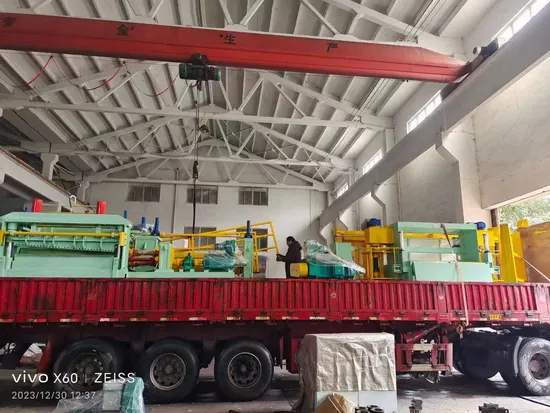

Packaging & Shipping
FAQ
1) Q: Will you deliver the right goods as ordered? How can I trust you? A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided). We have cooperated with many customers all over the world with high market reputation, no worries.2) Q: How to choose the Tube Mill Line? A: You have to inform us following details:- The pipe material- Round pipe range- Square pipe range- Rectangle pipe range- Wall thickness range- The pipe usage3) Q: How to choose the Roll Forming Machine? A: You have to inform us following details:- Coil material- Coil thickness- Coil weight- Cutting type- Profiles drawings- Other special attention4) Q: How to choose the Slitting Line & Cut to Length line? A: You have to inform us following details:- Coil material- Coil thickness- Coil width- Coil weight- Finished sizes- Other special attention5) Q: Where is the nearest airport to your company? A: Shanghai Putong or Hongqiao Airport.6) Q: How about your service? A: Before sales:- Technical Support: We provide detailed technical information such as technical & commercial offer, machine photos, running video, layout, operation manual, and show you working machines in our factory.- Apply Visa: Provide officially invitation letter to apply Visa in china embassy as authority procedures and requirements.

---
