Hot Selling ND: Yap Laser Crystal

Product Description

Products Description

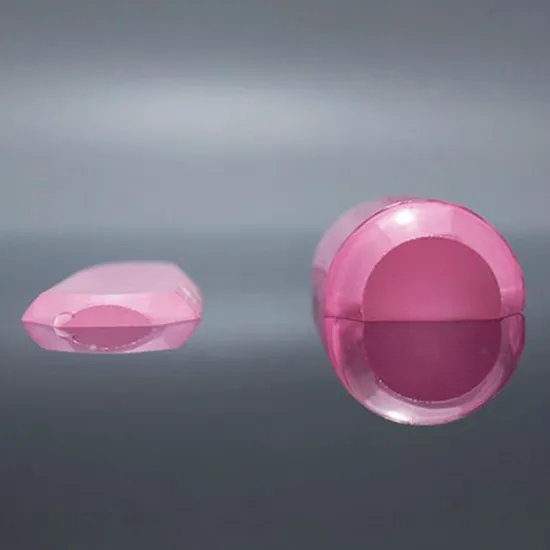

Nd:YAP Nd:YAP is an excellent laser crystal for high-power solid-state lasers. Because it outputs linearly polarized light, it is especially suitable for solid-state lasers with electro-optic boxes or harmonic generators to obtain high-efficiency laser output . The 1.34μm wavelength laser emitted by Nd:YAP crystal has greater advantages in laser medical applications than the 1.32μm wavelength laser emitted by Nd:YAG crystal. Main features: Output linearly polarized laser 1.079μm laser threshold and output efficiency are similar to 1.064μm of Nd:YAG crystal 1.34μm laser output efficiency is higher than 1.32μm of Nd:YAG crystal The absorption of water and human body fluid tissue to 1.34μm laser is higher than that of 1.32μm
Product Parameters

Crystal structure	Orthorhombic system
Lattice constant	a = 0.518 nm, b = 0.532 nm c = 0.736nm
Melting point	1870°C
Density	5.35 g/ cm3
Moh's hardness	8.5
Specific heat capacity	400J/(kg K)
Coefficient of thermal expansion	a axis: 9.5 x 10 -6 /K , b axis: 4.2 x 10 -6 /K ; c axis: 10.8 x 10 -6 /K
Thermal conductivity	11W/(m·K)
Refractive index	na=1.91 , nb=1.92 , nc=1.94
Thermo-optic coefficient	dna/dT=9.7 x 10 -6 /K dnb/dT=14.5 x 10 -6 /K

Doping concentration	Nd: 0.7~ 0.9 at%@1.079 μm (continuous, pulsed laser), 0.85~0.95at%@1.34μm ( continuous laser) other doping concentrations can be customized
Orientation	[010], ±5°
Crystal rod size	Diameter: 2~10mm, length: 20~150mm , can be customized
Dimensional tolerance	Diameter: +0.00/-0.05mm, Length: ± 0.5mm
Cylindrical processing	Grinding and Polishing
Parallelism of end faces	≤10"
Perpendicularity between end face and rod axis	≤5′
Flatness of end face	≤λ/10 @632.8nm
Surface Quality	10-5 (MIL-O-13830A)
Chamfer	0.15±0.05mm
AR Coating Reflectance	≤0.25%
Damage threshold	≥500MW/ cm2

Company Profile

Shanghai Opticrystal Materials Co., Ltd was established in 2014 , mainly engaged in the R&D, processing and sales of optical crystals, electronic and semiconductor materials, as well as laboratory equipment, spare parts, consumables and other products. With a professional R&D, processing and sales team. Our products have been widely sold and used in laser processing, new energy vehicles, photovoltaics, optical communications, aerospace, ships, nuclear detection, medical beauty, consumer electronics, electricity, Environmental protection, scientific research and other fields, the products are exported to Europe, America and Southeast Asia and other regions.
Why Choose Us
FAQ 1. Who are we?
We are based in Shanghai, China, and the company started from 2014. Products have been sold to Europe (30.00%), North America(30.00%), South America(20.00%) and East Asia (20%).There are total about 35 employees in our company. 2. How can we guarantee quality?
With over 10 years manufacturing experience and strict quality control system, the products quality is ensured. Also samples are available before mass production; Always final Inspection before shipment.
3.What can you buy from us? . Optical Crystals :
Laser crystals: Nd:YAG, Cr4+:YAG, Yb:YAG, Tm:YAP, Ho:YAG , Ho:YAP, Er:YAG, Er: glass, Nd:YLF, Nd:YVO4, Ti3+:Al2O3 and bonded crystals. Scintillation crystals: Ce:LuAG, Ce:GAGG, Ce:YAG.
Piezoelectric crystals: BaTiO3, Quartz, (PMN-PT), LiTaO3, LiNbO3,LGS.
Magneto-optic crystals: TGG, TSAG,TLF, KTF, CeF3, YIG.
Acousto-optic crystal: TeO2. Birefringent crystals: YVO4, α-BBO.
Nonlinear crystals: β-BBO, KDP, DKDP, LBO, KTP, PPLN. Metal Single crystals: Al, Cu, Mg, Ni.
Single crystal substrates: Al2O3, GGG/NGG/SGGG,LSAT, LaAIO3, MgO, MgAl2O4, SrTiO3, YSZ, TiO2.
Gemstones: Ruby, Sapphire, Emerald.
. Precision Optics:
Optical windows, filters, lenses, prisms, objective lenses, cylindrical mirrors, mirrors, beam combiners, beam expanders,
wedge mirrors, glued mirrors, etc.; materials include BK7, K9, quartz glass, sapphire, silicon Si , Germanium Ge, zinc selenide ZnSe, calcium fluoride CaF2, magnesium fluoride MgF2, barium fluoride BaF2, zinc sulfide ZnS and so on.
. Optical Devices:
Photoelectric Pockels Cell: BBO, KDP, DKDP, LN/MgO:LN, LGS, KTP, RTP. Faraday Optical Isolators: Polarization-independent isolator, polarization-dependent isolator, near-infrared visible light free-space isolator, in-line isolator, circulator, etc.
Optical Modulators: lithium niobate phase modulators, fiber-coupled acousto-optic modulators, spatial acousto-optic
modulators, acousto-optic Q switches, acousto-optic filters, acousto-optic deflectors, and acousto-optic drivers.
Special Optical Fiber:
special silica optical fiber, single optical fiber, optical fiber bundle, optical fiber passer, optical fiber collimator.
. Semiconductor Materials:
Quartz, diamond, GaAs, Si, Ge, ZnO, AlN, GaN, GaO, SiC, LiTaO3, LiNbO3, etc.
Ceramic Substrates: Si3N4, Al2O3, AlN, ZrO2.
Sputtering targets: single crystal target, metal target, alloy target, ceramic target, compound target, rare earth target.
. Laboratory equipment and consumables:
Optical platforms, translation stages, mirror frames, teaching experiment modules, spectrometers, power meters, lasers, pulsed
xenon lamps, scientific research electric furnaces, performance testing equipment, consumables, etc.
4. What services can we provide?
Free samples
Customization
24hours online service.
After sales service
