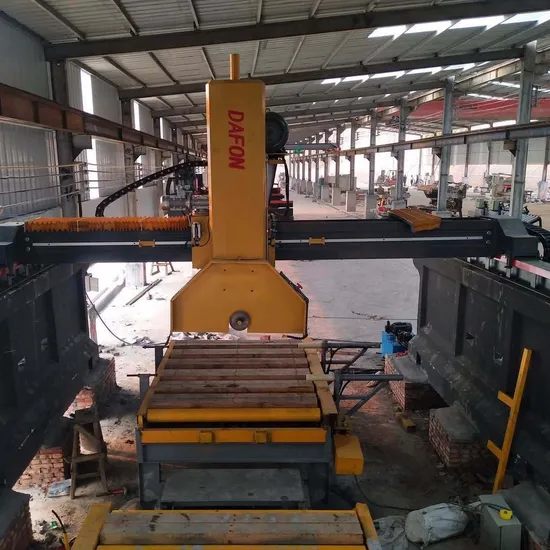

Kerb Stone Cutting Machine Line Edge Cutting Df1200-1s Single Blades Granite Curb Stone Processing Cutting Machine Block Cutter

Product Description

Kerb Stone Cutting Machine line One-stop solution for curbstone cutting With the rapid growth of the economy, city construction requires higher output and more precision for curbstone cutting. DAFON dedicate to curbstone-cutting machine lines for more than 10 years, we provide advanced full-line equipment solutions for curbstone.
The whole process of kerbstone production
After cutting the stone height by block cutter, a worker hoisted the material to the curbstone slicing machine, another worker hoisted the curbstone cut along the curbstone cutting machine line to the curbstone chamfering machine for grinding and chamfering, and a third worker unloads and packages the material by a small crane behind the chamfering edger. The entire process requires only three workers to operate, which greatly saves labor costs. The whole production continuity is continuous and the stability is good.
Technical parameters:
Features:
1. The main part of the whole machine is made of integrated cast iron, which is conducive to the stability of the machine when cutting.
2. The main and auxiliary shafts are bidirectionally supported and connected, and the main shaft is more durable and not easy to wear after high-frequency quenching and tempering
3. The main machine adopts bilateral oil cylinder lifting instead of screw lifting, providing strong support for the machine
4. The large-scale trolley can process 2 pieces of 80cm blocks at the same time, and the stones are conveyed by the roller, which greatly improves the work efficiency
5. No need to install cement foundation, simple electric control operation, easy to use

Advantages:
1. No foundation needed, easy installation, easy for shipping.
2. It adopts an enlarged trolley, 2 pcs of block can be cut at one time, which can greatly improve output and efficiency.
3. It uses the main spindle and a vice spindle to seal together which can ensure the machine is stable while cutting hard granite.
4. It uses a simple program of movement on the controlling box, easy for setting and handle.
5. A hydraulic system is adopted on the machine

Production process:
1. Put the machine on the prepared ground.
2. Put several pieces of wood as thick as 50mm on the worktable to prevent blades from cutting into the worktable.
3. Install water pipe.
4. Blade installation: Open blade cover, unscrew 8 retaining bolts and position bolts with a dedicated spanner, loosen auxiliary spindle (shaft), put on blades and clamping plates as per intended stone size (thickness), align oil hole of the auxiliary spindle to air hole according to the arrow direction on auxiliary spindle and box, have them fixed with bolts, close blade cover.
5. Check transmission fluids of the spindle box, auxiliary spindle box, trolley track, and lifting parts.
6. Connect control cabinet power.

After Sales Service:
We provide skilled and rich experience technicians for installation and after-sale service.

Pre-Sales Service * Inquiry and consulting support. * Configure the best machine line according to customer condition * View our Factory.

After-Sales Service * Training how to install the machine, training how to use the machine. * Engineers available to service machinery overseas. * Lifetime technology maintenance in free and spare parts supply. Related Products

Packaging & Shipping
The machine will be consolidated tightly and safely within the container and delivered by sea or railway, we offer fast delivery and prompt reaction.
FAQ:
Q1: What is your competitiveness?
A: We can provide a one-stop shopping service. Our machine has a good price with the best quality. Each machine has its long lifetime, high production capacity, and accuracy. Also, we could appoint our engineer to come overseas to help the customer if the machine got a problem.

Q2: When do you ship my order?
A: Normally 20-30 days after receiving final payment, but it can be negotiated if customers need it urgently.

Q3: How about the quality guarantee period?
A: one year for machine parts, 6 months for the electronic parts

Q4: What's your advantage? Why did we choose you?
A:1)Rich experience in stone machine production and R&D. We have the most professional techniques and team. More advantages in price
2) Great production capacity and Sustainable Supply. According to customer requirements, We support the customized include package.
3)We use 100% new materials and the best production process, in consequence, our defective rate is lower than 0.01%

Q5: How about the delivery of goods to our country?
A: For urgent or small orders with lightweight, the express courier will be preferable to save time and trouble of goods clearance(door to door); As for bulk orders or machinery orders, by sea(maritime way) is recommended for lower shipping cost. But it is taking a long time.
Company profile:
Quanzhou Dafon Machinery Co., Ltd., located in Shuitou Town, is a professional stone machinery enterprise integrating design, manufacturing, and sales. Mainly produce curbstone assembly line equipment, Infrared bridge cutter, automatic edge cutting machine, Infrared middle bridge cutter, single arm block cutter, bridge block cutter, mining machine, and other types of stone machinery.

The company has advanced mechanical processing equipment, standardized workshops, a strong technical force, efficient research and development team, and rich experience in stone machinery production, which make the company continue to be at the forefront of stone machinery. Relying on the advantages of strong industrial clusters, the company provides customers with free one-stop solutions for the stone industry (granite), including mining planning guidance, technical consultation, technical output, equipment procurement, processing, construction guidance, etc. As long as you invest in the stone industry, we provide you with a series of professional services.
