High Efficiency Mobile Multi-Drill Hammer Machine for Split Hole

US$3,500.00-9,000.00 1 Set (MOQ)

Basic Info.

Model NO.
BL28-4AH Pneumatic Mobile Rock Drill
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Manufacturer
Manufacturer for Vertical Rock Driller and Stand
Size
4m Length and 5m Height
Brand
Bestlink
Usage
Drill Hole for Passage of Diamond Wire,Drill Holes
Special Design
Special Design Are Available Based on Needs
Color
Normall Blue, Also Can Be Special Made.
Material
Hard Steel for The Control Stand,and Good Driller
Compressor Air Required
0.4-0.7mpa
Air Motor
2.0bcbm/Min
Key Word
Mobile Rock Driller,Mobile Drilling Machine
Transport Package
Plywood Packing
Specification
CE, ISO2000, SGS
Trademark
BESTLINK
Origin
Xiamen Fujian
HS Code
84305039
Production Capacity
100sets

Packaging & Delivery

Package Size
320.00cm * 80.00cm * 80.00cm
Package Gross Weight
500.000kg

Product Description

Products feature:

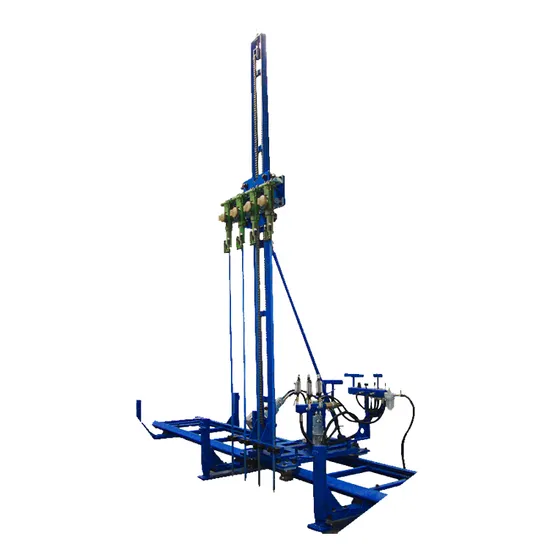

Pneumatic mobile gang drill /Mobile line drilling machine is ideal for quarrying, rock explosion, especially making large diameter holes. (90mm/3.5 inch). It is mainly used for making holes for the passage of diamond wire. And also good for normal line hole drilling, such as holes for expansive mortar.
Practicality in use, derived from its simple construction, and the lightness of the structure are its main characteristics. Two control ways to choose, one is feeding by pneumatic motor, cross moving by handwheel.
The other one is both feeding and cross moving by pneumatic motor.
The drill is equipped with a pneumatic rotation head which combined with the hole hammer permits drilling linearity to be maintained, reaching considerable depths at high penetration speeds.
The support column has a special fixing system with a spherical joint and an anchoring down jack which permits drilling in all directions.
Other construction characteristics permit the drill height from the ground to be kept to a minimum, in the case of horizontal drill.
Why Choose Us?
Xiamen Bestlink Factory Co., Ltd since 1985 is committed to providing the best drilling and cutting machine, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project. It is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones.
Model no. Drilling direction Feeding system & cross moving device Jackhammer Positional device
BL28-AHM horizontal drilling feeding by pneumatic motor 1*YT28 anchor-wedge
BL28-AV vertical drilling feeding by pneumatic motor,cross moving by handwheel 1*YT28 anchor-wedge and adjustable screw rod
BL24-2AM vertical drilling feeding by pneumatic motor,cross moving by handwheel 2*YT24 anchor-wedge and adjustable screw rod
BL28-2AM vertical drilling feeding by pneumatic motor,cross moving by handwheel 2*YT28 anchor-wedge and adjustable screw rod
BL24-2AM vertical drilling feeding and cross moving by pneumatic motor 2*YT24 anchor-wedge and adjustable screw rod
BL28-2AM vertical drilling feeding and cross moving by pneumatic motor 2*YT28 anchor-wedge and adjustable screw rod
BL24-4AH vertical drilling feeding and cross moving by pneumatic motor 4*YT24 anchor-wedge and fast positional leg
BL28-4AH vertical drilling feeding and cross moving by pneumatic motor 4*YT28 anchor-wedge and fast positional leg
