Josen Fgm-510ahd Type, Heavy Cutting, Fully Automatic Surface Grinder Favorable Price

Product Description

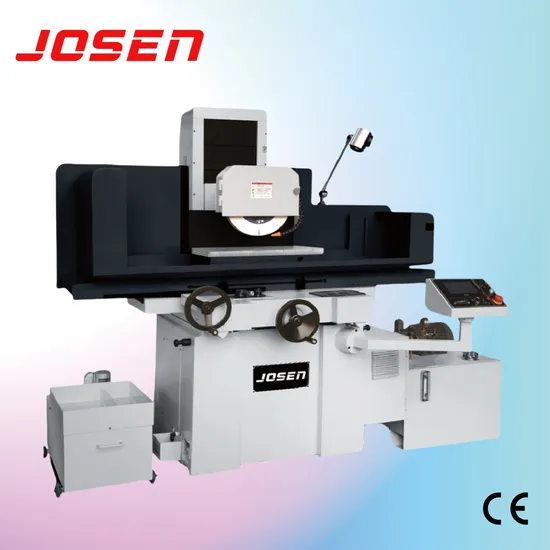

JOSEN FGM-510AHD Type,heavy cutting, Fully Automatic Surface Grinder
Product Description
Basic Info
Standard Configuration

Flange	Socket wrench	Toolbox
Grinding Wheel	Balance rods	Hexagonal wrench
Wheel dresser pen	flange removal tool	A screwdriver
footrest tray	Counterbalance	Phillips screwdriver
Foot Screw (with Nut)	Counterbalance Screws	Open-end wrench
Electromagnetic suction cups	Grinding wheel dresser holder	Socket wrench

Product Specification

Technical Parameters			Unit	FGM-510AHD
Processing capacity	Table size		mm	1000*500
	Maximum grinding length		mm	1140
	Maximum grinding width		mm	540
	Distance spindle to table		mm	750
	Maximum table bear the weight		kgs	1000
Table	T-slot table		mm*N	16*3
	Table speed		m/min	7-28
front and rear structures (Structure before and after)	Front and rear handwheel feed	A grid	mm	0.02
		Lap	mm	5
	Front and rear automatic feed		mm	0.5-12
	Back and forth	50Hz	mm	1250
		60Hz	mm	1500
Grinding Wheel (Grinding wheel)	Wheel size (wheel)		mm	400*40*127
	Spindle speed	50Hz	Rpm	1450
		60Hz	Rpm	1750
The vertical structure	Maximum movement		mm	580
	Upper and lower hand wheel feed	A grid	mm	0.002
		A rotation	mm	0.2
	Automatic feed		mm	0.005-0.1
	Fast moving up and down volume		m/min	230
Motor	Spindle motor		KW	7.5
	Up down drive motor		N.M	12
	Front and rear drive motor		N.M	12
	Hydraulic motor		KW	3.75
	Flush the motor		KW	0.12
Packing size	Machine height		mm	2400
	Covers an area of		mm	4500*2350
	Net weight (nrt weight)		Kg	5000
	Cross weight		Kg	6000

Major Component Suppliers

Serial number	the name of the spare part	Brands
1	spindle assembly	Dongguan Fengbao
2	Spindle motor	Shanghai Cosmos or Jiangsu Liangqi
3	Hydraulic motors	Suzhou San Yu
4	Hydraulic pumps	NJ Montford
5	hydraulic valve body	Hangzhou Seiko
6	Electrical buttons	Hangzhou Tiande/Hoquan
7	contactors, thermal protectors	Taian
8	Lubrication pumps for the entire machine	Jiaxing Shengxiang
9	Front and rear screws	AHK
10	stepper motors and drivers	Miguel/Division
11	PLC controller	Upper Silver or equivalent brand
12	servo motors and drives	Wojciechon
13	Electromagnetic suction cups	Kunshan Jufa/Linqing Xinghe

Our Advantages
VMC Machine Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional.
Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Detailed Photos

Company Profile
Packaging & Shipping

FAQ

1. What is your product range?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, tell us what you want to do by using CNC machining center, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the payment terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
6. What about the after sale service?
A:We provide one year warranty, if any parts broken, we will send you a new one for free.
7.Before sending me an inquiry on our machine, it is better for you to provide me the following information?
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.

---
