CS6266 High Precision Best Quality Conventional Manual Mill Drill Lathe for Sale

Product Description

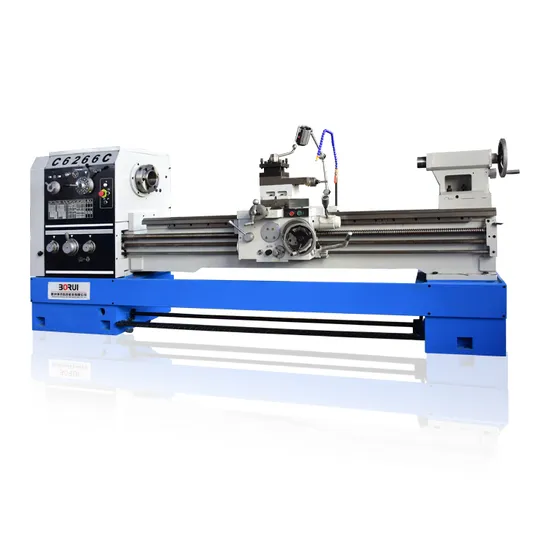

CS6266 High Precision Best Quality Conventional Manual Mill Drill Lathe For Sale
Product Description Application:The surtace of the bedways is supersonic frequency.
The spindle bore size is 105mm. The spindle system is high in rigitidy and accuracy.
There is no need for change gears. The machine can turn about 89 kinds of metric, Inch, Module and D. P. Threads.
An automatic stopping device is used to realize automatic stop for the machining of a workpiece of a certain length.

Model	CS6250	CS6266(C6266C)	CS6280
CAPACITIES max.swing over bad	Φ500mm	Φ660mm	Φ800mm
Max.swing over cross side	Φ300mm	Φ420mm	Φ560mm
Center jistance	1000mm(40") 1500mm(600") 2000mm(80")3000mm(118")/4000mm
Max,swing over gap	Φ710(28")	Φ870(34")	Φ1010(40")
Effective length of gap	230mm(9")
Bed width	405mm
HEADSTOCK spindle hole	Φ105mm
spindle nose	D8/D11
spindle taper	113mm 1:20
spindle speeds(Number)	36-1600r.p.m(12steps) 30-1400r.p.m(12steps)
FEEDS Metric threads range(Kinds)	1-14mm/22kinds
Inch threads range(Kinds)	28-2T.P.I./25kinds
Moudle threads range(Kinds)	0.5-7mm/18kinds
Diametral threads range(Kinds)	56-4D.P/24kinds
Longitudinal feeds range	0.063-252(0.023"-0.937")
Cross feeds range	0.027-1.07(0.011"-0.404")
Leadscrew size:Diameter pitch	Φ40mm/Φ12mm/Φ12.7mm
CARRIACGE cross side travel	360mm(14-3/16")
Compound rest travel	145mm(5-3/4")
Cross-section size of toolshank	25*25mm(1" "1")
TAILSTOCK taper of tailstock sleeve	M.T.NO.5
Diameter of tailstock sleeve	Φ75mm(2-61/64")
Travel of tailstock sleeve	150mm(5-29/32")
MOTOR main drive motor	5.5kw/7.5kw
PACKING SIZE(L*W*H)
Center distance:1500mm	3000*1150*1800mm
2000mm	3500*1150*1800mm
3000mm	4500*1150*1800mm
Net weight/Gross weight(kgs)	3150/3800kgs	3500/4150kgs	3650/4300kgs

Product Details
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
