Stainless Steel Sanitary Rotatory Pump

US$500.00 1 Piece (MOQ)

Basic Info.

Model NO.

LHTRI

Max.Head

80-110m

Max.Capacity

200-300 L/min

Pressure Medium

Oil

Type

Handheld

Position of Pump Shaft

Horizontal

Certification

ISO

Motor

ABB Motor, Chinese Motor

Material

SS304, SS316L

Kind

Fixed, Portable

Configure

Mechanical Seal, O Ring

Transport Package

Wooden Package

Specification

ISO, SGS

Trademark

Lihong

Origin

China

HS Code

84342000

Production Capacity

10000PCS/Year

Product Description

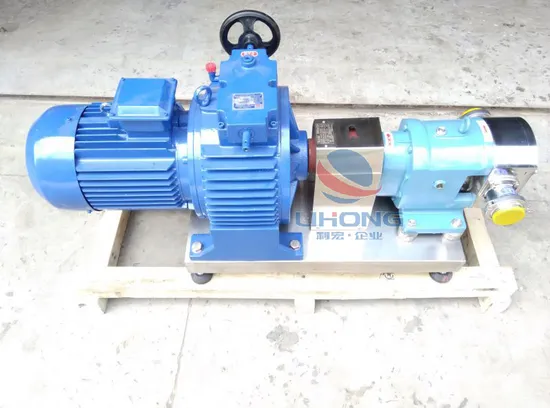

LH-Stainless Steel Sanitary Rotatory Pump
1. Body material: SUS 304 or 316L
2. Capacity: 500L/h ~ 14000L/h
3. Material viscidity: 0.2CP~500, 000CP
4. Max Outlet pressure: 0.8-1.2Mpa(high viscidity)
5. Working temperatue: -30ºC~150ºC
6. Motor (Reducer): Chinease motor
7. Speed adjustable reducer
8. Speed fixed reducer
9. Frequency adjustable reducer
Conctact us for more details.

Model	L	L1	L2	L3	L4	H	H1	H2	D	A	B	AB	C	Power
TR-I-05	360	205	28	110	210	315	205	280	25	160	120	200	118	0.55
TR-I-1	387	215	32	120	230	355	233	310	25	160	160	200	126	0.55
TR-I-2	423	215	38	120	230	355	233	323	25	212	160	200	126	0.75
TR-I-3	458	220	40	120	330	372	252	342	32	212	180	250	135	1.1
TR-I-4	488	225	42	130	330	372	252	342	38	212	180	250	135	1.5
TR-I-5	528	255	46	150	400	460	285	390	38	240	245	300	166	2.2
TR-I-6	548	270	50	170	400	460	285	390	50.8	240	245	300	166	3.0
TR-I-7	568	362	52	170	400	460	285	390	50.8	240	245	300	194	4.0
TR-I-8	644	372	60	180	500	610	373	510	63.5	290	315	350	194	5.5
TR-I-9	684	382	68	200	500	610	373	510	63.5	290	315	350	194	7.5
TR-I-10	684	394	75	210	500	610	373	510	63.5	290	315	350	194	7.5
TR-I-11	830	440	80	210	600	700	400	530	89	290	350	400	204	11
TR-I-12	830	445	93	220	600	700	415	595	89	385	350	400	204	11
TR-I-13	875	465	103	240	600	700	415	595	100	385	350	400	204	15
