Agricultural Rotary Tiller Soil Cultivator

US$800.00 1 Piece (MOQ)

Basic Info.

Model NO.
9GNK-160
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Transmission Shaft
Drive Type
Transmission Shaft
Certification
CE
Color
Green
Warranty
One Year
Price
Best
Colour
Many
Working Width(Cm)
80/120/140/150
Transport Package
Iron Frame
Specification
ISO9001: 2000
Trademark
Dadi
Origin
China Shandong
HS Code
8432290000
Production Capacity
5000sets/Year

Product Description

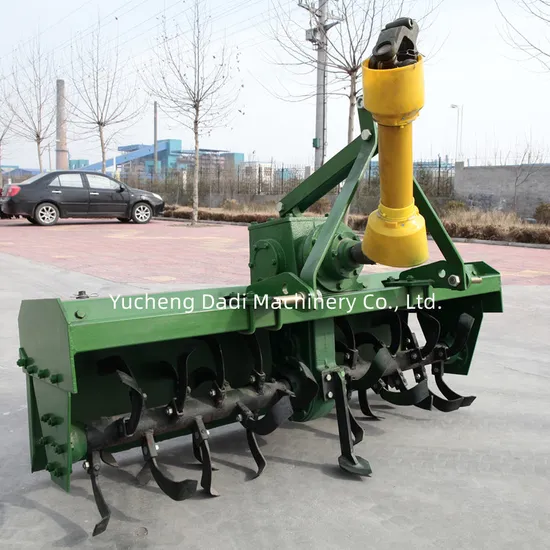

Rotary Tiller
Rotary tiller driven by the tractor's out-put shaft.During operation,the soil is crumbled by the rotating and forwarding of the blades fixed on the shaft.It also can be used as shallow tilling and covering on the stalinized soil to prevent the salt in the soil.The machine will fulfill the working of cleaning stubble and weeds,turning and covering green fertilizer vegetable fields,etc.After tillage,the land surface is leveling and smooth,the cover burden is closely,working efficiency is high and oil consumption is lower.
Specifications:
Model Matched power(hp) Working width (m) Working depth mm Qty.Of knives Type of knife
Total weight(kg)		 O.D.Mm
(L*W*H)
1GQNK-80D 12-15 0.8 80-160 16 LT245 190 850×850×1000
1GQNK -100D 12-15 1.0 80-160 16 LT245 208 850×1050×1000
1GQNK -115D 15-18 1.15 80-160 24 LT245 224 900×1310×1000
1GQNK -120D 15-18 1.2 80-160 24 LT245 229 900×1350×1000
1GQNK -125D 18-20 1.25 80-160 24 LT245 234 900×1450×1000
1GQNK -140D 20-25 1.4 80-160 24 LT245 244 900×1600×1000
1GQNK -150D 25-30 1.5 80-160 24 LT245 254 900×1740×1000
1GQNK -160D 30-40 1.6 80-160 24 LT245 265 900×1880×1000
1GQNK -180D 50-55 1.8 80-160 32 LT245 437 1020×2056×1152
1GQNK -200D 55-75 2.0 80-160 32 LT245 452 1020×2396×1152
1GQNK -220D 60-80 2.2 80-160 40 LT245 475 1020×2636×1152
1GQNK -250D 75-80 2.5 80-160 40 LT245 490 1020×2816×1152
1GQNK -280D 80-90 2.8 80-160 48 LT245 515 1020×3066×1152
1GQNK -300D 90-100 3.0 80-160 56 LT245 536 1020×3316×1152
