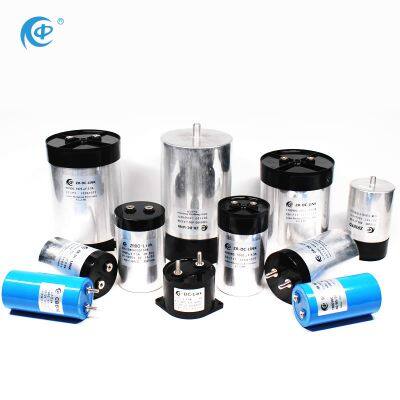

Cylindrical Aluminium Can DC-Link PPM Film Capacitors

Product Details

Product Description

Product Description
Cylindrical Aluminium Can DC-Link PPM Film Capacitors
Capacitor Features
High RMS Current
Low ESR
Life Expectancy 100,000Hours
Filled with resin, Dry type
Non Inductive Type, Aluminum Case
Flame Retardant ROHS Compliant
Reference Standard: IEC 601071 and IEC 60068
Applications
DC Link and DC Filter Applications in Powe Converters for Uninterruptible power supplies
Wind Power Inverters
Solar Power Inverters
High Voltage Inverters
Traction and industrial drives
Impulse discharge capacitors for magnetizing and welding
Induction Heating Equipment
Technical Data and Specification

Technical Data and Specification	DC Link Capacitor
Rated Voltage	500VDC -2000VDC
Capacitance Rage	0.47UF-1000uF
Capacitance Tolerance	±5%
Reference Standard	IEC 60252
Capacitance range	2-120μF
Tangent of loss angle	≤0.002 (100Hz)
Rated frequency	50Hz/60Hz
Dissipation factor	20X10-4(100Hz,20℃ )
Test voltage between terminal	2Un for 1.5seconds
Test voltage terminal to case	(2Un +1000)VAC or 2000VAC - 50Hz for 60seconds
Insulation Resistance	≥ 3000MΩ.μF (100Hz, 20℃, 60seconds )

---
