4 Inch 7 Segment Display with 8 LEDs Per Seg with RoHS From Expert Manufacturer

Product Description

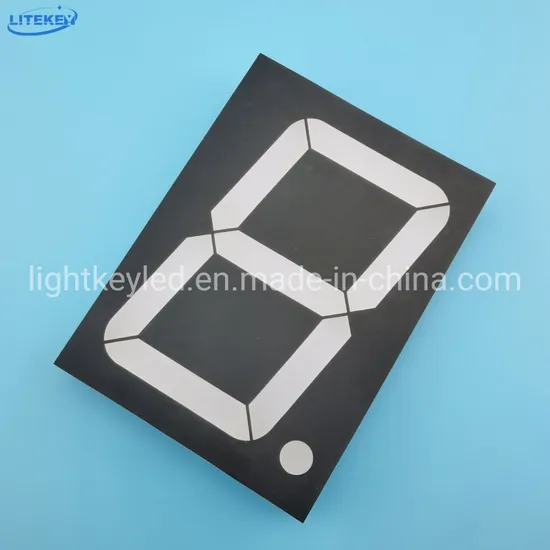

Product Name 4 Inch 7 Segment Display with 8 LEDs Per Seg
Detailed Photos
Features Ø 101.6 mm (4 inch) digit high
Ø Excellent digit appearance
Ø Wide viewing angle
Ø Range of emitted colors
Ø I.C. compatible
Ø Low power consumption
Ø White segment
Ø RoHS compliant
Available Options Ø Alternative emitting luminosity:
Standard or high brightness version
Ø Alternative emitted color
Ø Alternative segment color
Ø Alternative font
Ø Common Cathode is available
Ø Cropped terminal pins
Selection Guide

Single Digit 7 Segment LED Display, Digit Height: 101.60mm(4.00inch), External Dimensions: 90.00x122.00x15.00mm (L x W x H )
Part No.		Chip			Iv@IF=20mA		Iv@IF=20mA
CC	CA	Material	Color	WLD	One Seg		One DP
					Min.	Typ.	Min.	Typ.
LD40011CR	LD40011DR	GaAlAs	Super Red	640	48	60	12	15
LD40011CD	LD40011DD	GaAlAs	Hi-Red	640	108	150	27	37.5
LD40011CO	LD40011DO	GaAsP	Orange	625	42	54	10.5	13.5
LD40011CY	LD40011DY	GaAsP	Yellow	588	48	60	12	15
LD40011CG	LD40011DG	GaP	Green	568	42	54	10.5	13.5
LD40011CUR	LD40011DUR	AlGaInP	Ultra Red	640	180	270	45	67.5
LD40011CUO	LD40011DUO	AlGaInP	Ultra Orange	625	270	360	67.5	90
LD40011CUA	LD40011DUA	AlGaInP	Ultra Amber	605	180	270	45	67.5
LD40011CUY	LD40011DUY	AlGaInP	Ultra Yellow	595	180	270	45	67.5
LD40011CUG	LD40011DUG	AlGaInP	Ultra Green	573	180	270	45	67.5
LD40011CPG	LD40011DPG	InGaN	Pure Green	525	720	1800	180	450
LD40011CUB	LD40011DUB	InGaN	Ultra Blue	470	180	270	45	67.5
LD40011CUW	LD40011DUW	SMD	Ultra White	\	600	720	150	180
Unit:	\	\	\	nm	mcd	mcd	mcd	mcd

Package Dimensions
Application
>>> 7 segment LED display Series
Click here for more 7 segment led display products >
https://lightkeyled.en.made-in-china.com/product-group/coWmkijOEUVP/7-Segment-LED-Display-catalog-1.html
